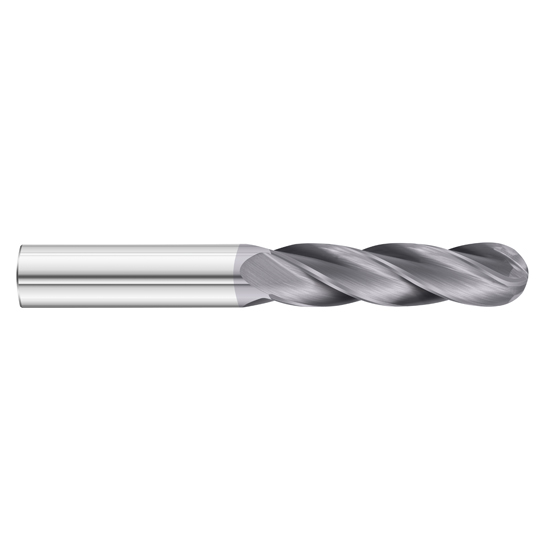

Fullerton Tool 30071 | 3/16" Diameter x 3/16" Shank x 1-1/4" LOC x 3" OAL 4 Flute TiAlN Solid Carbide Ball End Mill

SKU: 25001084 Weight: 0.13 LBS Minimum Purchase: 1 unit
UPC:
$34.29
Ships: From Partner Facility
Shipping: Calculated at Checkout

About This Item

Features

  • The 3200 General Purpose end mill has 4-flutes and was designed for use in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, and low si aluminum
  • It is offered in a variety of configurations and is available with single-end and double-end designs
  • The 3200 General Purpose end mill is stocked uncoated and with FC-20, TiAlN, TiCN, and TiN coatings

Product Specifications
Cutting Diameter (Decimal Inch) 0.1875"
Cutting Diameter (mm) 4.76mm
Cutting Diameter (Inch) 3/16"
Cutting Flute Length (Decimal Inch) 1.2500"
Cutting Flute Length (mm) 31.75mm
Cutting Flute Length (Inch) 1-1/4"
Shank Diameter (Decimal Inch) 0.1875"
Shank Diameter (mm) 4.76mm
Shank Diameter (Inch) 3/16"
Overall Length (Decimal Inch) 3.0000"
Overall Length (mm) 76.20mm
Overall Length (Inch) 3"
Coating/Finish TIALN
Metric/Inch Inch
Number of Flutes 4
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Ball
End Type Character Designation B
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Extra Long
Length Designator XL
