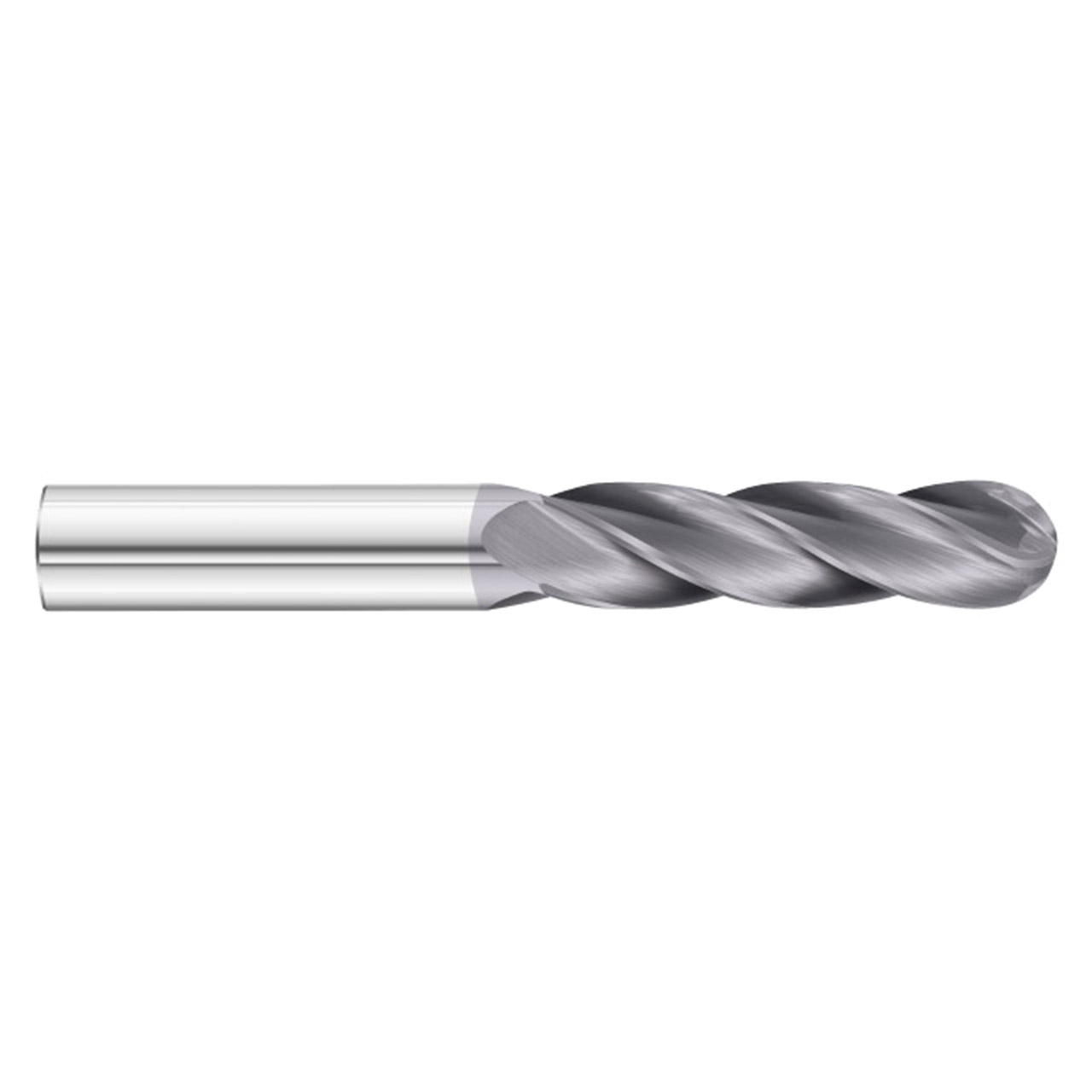

It's designed for use in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, and low si aluminum, it offers a variety of configurations, and is available with single-end and double-end designs. The 3200 4-Flute General Purpose end mill has 4-flutes and is stocked uncoated and with TiAlN coatings.
Product Specifications
| Manufacturer Part Number | 30089 |
| Cutting Diameter (Inch) | 7/16" |
| Cutting Diameter (Decimal Inch) | 0.438" |
| Cutting Diameter (mm) | 11.11mm |
| Shank Diameter (Inch) | 7/16" |
| Shank Diameter (Decimal Inch) | 0.438" |
| Shank Diameter (mm) | 11.11mm |
| Cutting Flute Length (Inch) | 1-1/2" |
| Cutting Flute Length (Decimal Inch) | 1.500 |
| Cutting Flute Length (mm) | 38.10mm |
| Overall Length (Inch) | 6" |
| Overall Length (Decimal Inch) | 6.000" |
| Overall Length (mm) | 152.40mm |
| Number of Flutes | 4 |
| Helix Angle (Degree) | 30.00 Degree |
| Length | Extra-Long |
| Flute Spiral | Right Hand |
| Cutting Direction | Right Hand |
| End Type | Ball |
| Coating | TiAlN |
| Series | 3200 |
| Product Type | Ball End Mill |
