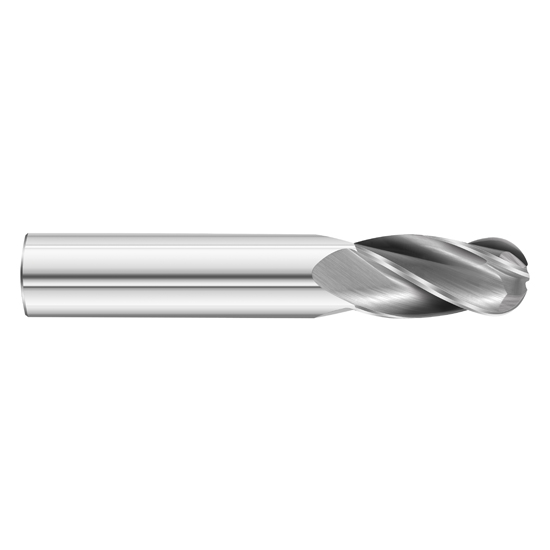

Fullerton Tool 32036 | 1/8" Diameter x 1/8" Shank x 1/2" LOC x 1-1/2" OAL 4 Flute Uncoated Solid Carbide Ball End Mill

SKU: 25001021 Weight: 0.01 LBS Minimum Purchase: 1 unit
UPC:
$13.14
Ships: From Partner Facility
Shipping: Calculated at Checkout

About This Item

Features

  • The 3200 General Purpose end mill has 4-flutes and was designed for use in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, and low si aluminum
  • It is offered in a variety of configurations and is available with single-end and double-end designs
  • The 3200 General Purpose end mill is stocked uncoated and with FC-20, TiAlN, TiCN, and TiN coatings

Product Specifications
Cutting Diameter (Decimal Inch) 0.1250"
Cutting Diameter (mm) 3.18mm
Cutting Diameter (Inch) 1/8"
Cutting Flute Length (Decimal Inch) 0.5000"
Cutting Flute Length (mm) 12.70mm
Cutting Flute Length (Inch) 1/2"
Shank Diameter (Decimal Inch) 0.1250"
Shank Diameter (mm) 3.18mm
Shank Diameter (Inch) 1/8"
Overall Length (Decimal Inch) 1.5000"
Overall Length (mm) 38.10mm
Overall Length (Inch) 1-1/2"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 4
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Ball
End Type Character Designation B
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator SD
