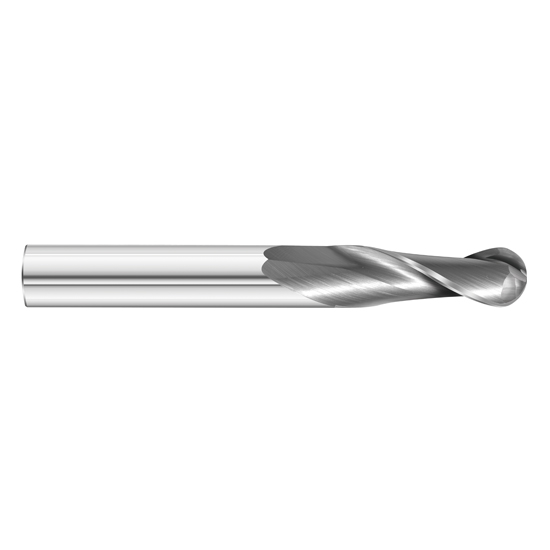

Fullerton Tool 32568 | 1/4" Diameter x 1/4" Shank x 1-1/8" LOC x 3" OAL 2 Flute Uncoated Solid Carbide Ball End Mill

$44.48 $28.02
(You save $16.46)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
1/4"
Number of Flutes:
2
Length of Cut (Inch):
1-1/8"
Length of Cut (Decimal Inch):
1.1250"
Length of Cut (mm):
28.58mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3"
Overall Length (mm):
76.20mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Single or Double End:
Single
Ships:
From Partner Facility
SKU:
25001257
UPC:
Weight:
0.08 LBS
Shipping:
Calculated at Checkout

Features

  • The 3215 General Purpose end mill has 2-flutes and was designed for use in titanium, super alloys, stainless steels, steels, cast iron, brass & copper, and low si aluminum
  • It is offered in a variety of configurations and is available with single-end and double-end designs
  • The 3215 General Purpose end mill is stocked uncoated and with TiAlN, TiCN, and TiN coatings

Product Specifications
Cutting Diameter (Decimal Inch) 0.2500"
Cutting Diameter (mm) 6.35mm
Cutting Diameter (Inch) 1/4"
Cutting Flute Length (Decimal Inch) 1.1250"
Cutting Flute Length (mm) 28.58mm
Cutting Flute Length (Inch) 1-1/8"
Shank Diameter (Decimal Inch) 0.2500"
Shank Diameter (mm) 6.35mm
Shank Diameter (Inch) 1/4"
Overall Length (Decimal Inch) 3.0000"
Overall Length (mm) 76.20mm
Overall Length (Inch) 3"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 2
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Ball
End Type Character Designation B
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Extra Long
Length Designator XL
