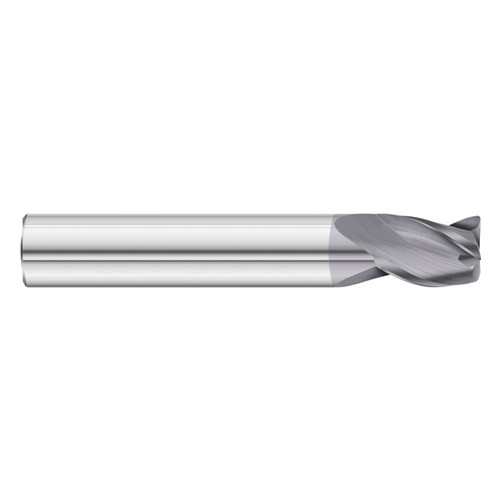

Fullerton Tool 33468 | 7/16" Diameter x 7/16" Shank x 1" LOC x 2-3/4" OAL 3 Flute TiAlN Solid Carbide Radius End Mill

About This Item

Features

• The 3335 Alloy Steel Rougher is a 3-flute, general purpose end mill designed for slotting, pocketing, and roughing in various alloy steels
• Its unique flute geometry and corner radius allows for increased chip loads, strength, and added tool life
• The 3335 Alloy Steel Rougher is stocked with TiAlN coating

Product Specifications

Cutting Diameter (Decimal Inch)	0.4375"
Cutting Diameter (mm)	11.11mm
Cutting Diameter (Inch)	7/16"
Cutting Flute Length (Decimal Inch)	1"
Cutting Flute Length (mm)	25.40mm
Cutting Flute Length (Inch)	1"
Shank Diameter (Decimal Inch)	0.4375"
Shank Diameter (mm)	11.11mm
Shank Diameter (Inch)	7/16"
Overall Length (Decimal Inch)	2.7500"
Overall Length (mm)	69.85mm
Overall Length (Inch)	2-3/4"
Coating/Finish	TIALN
Metric/Inch	Inch
Number of Flutes	3
Helix Angle (Degrees)	35
Flute Spiral Direction	Right Hand
Direction of Cut	Right Hand
Point End Type	Corner Radius
End Type Character Designation	R
Radius (Decimal Inch)	0.0150"
Radius (mm)	0.38mm
End Type	Single End
Coolant Through	Non Coolant Through
Weldon Flat	No
Length	Standard
Length Designator	SD
