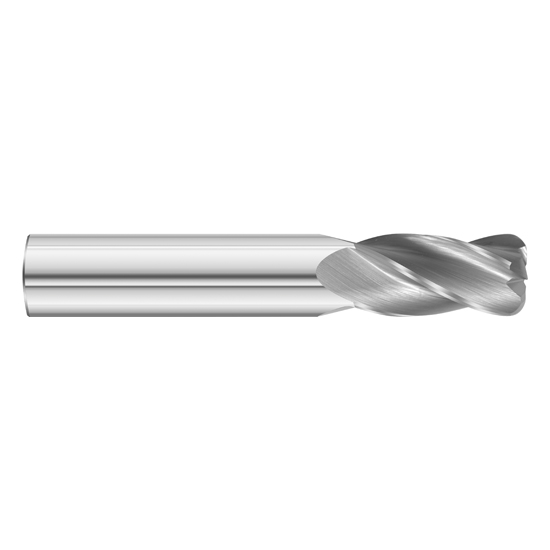

Fullerton Tool 33740 | 3/4" Diameter x 3/4" Shank x 1-1/2" LOC x 4" OAL 4 Flute Uncoated Solid Carbide Radius End Mill

SKU: 25001772 Weight: 0.77 LBS Minimum Purchase: 1 unit
UPC:
$197.65
Ships: From Partner Facility
Shipping: Calculated at Checkout

About This Item

Features

  • The 3200 General Purpose end mill has 4-flutes and was designed for use in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, and low si aluminum
  • It is offered in a variety of configurations and is available with single-end and double-end designs
  • The 3200 General Purpose end mill is stocked uncoated and with FC-20, TiAlN, TiCN, and TiN coatings

Product Specifications
Cutting Diameter (Decimal Inch) 0.7500"
Cutting Diameter (mm) 19.05mm
Cutting Diameter (Inch) 3/4"
Cutting Flute Length (Decimal Inch) 1.5000"
Cutting Flute Length (mm) 38.10mm
Cutting Flute Length (Inch) 1-1/2"
Shank Diameter (Decimal Inch) 0.7500"
Shank Diameter (mm) 19.05mm
Shank Diameter (Inch) 3/4"
Overall Length (Decimal Inch) 4.0000"
Overall Length (mm) 101.60mm
Overall Length (Inch) 4"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 4
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Corner Radius
End Type Character Designation R
Radius (Decimal Inch) 0.0900"
Radius (mm) 2.29mm
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator SD
