Features

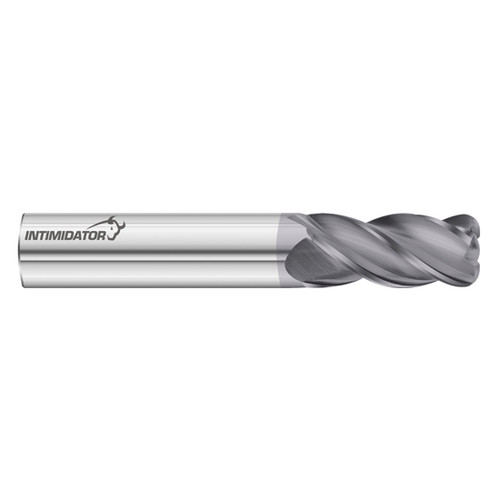

- The 3400 Harmon-i-Cut is a 4-flute, high performance end mill designed for difficult to machine ferrous materials
- It features a variable helix, variable index, and variable rake which maximizes tool life and removal rates by minimizing the effects of harmonics
- The 3400 Harmon-i-Cut allows the capability to rough and finish with one tool and is stocked with FC-18 coating
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.6250" |
| Cutting Diameter (mm) | 15.88mm |
| Cutting Diameter (Inch) | 5/8" |
| Cutting Flute Length (Decimal Inch) | 1.5000" |
| Cutting Flute Length (mm) | 38.10mm |
| Cutting Flute Length (Inch) | 1-1/2" |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (mm) | 15.88mm |
| Shank Diameter (Inch) | 5/8" |
| Overall Length (Decimal Inch) | 3.5000" |
| Overall Length (mm) | 88.90mm |
| Overall Length (Inch) | 3-1/2" |
| Coating/Finish | FC18 |
| Metric/Inch | Inch |
| Number of Flutes | 4 |
| Helix Angle (Degrees) | Variable |
| Flute Spiral Direction | Right Hand |
| Direction of Cut | Right Hand |
| Point End Type | Corner Radius |
| End Type Character Designation | R |
| Radius (Decimal Inch) | 0.0600" |
| Radius (mm) | 1.52mm |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
| Length | Standard |
| Length Designator | SD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Mill Diameter (Inch):
5/8"
Number of Flutes:
4
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.5000"
Length of Cut (mm):
38.10mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.90mm
Material:
Solid Carbide
Finish/Coating:
FC18
Single or Double End:
Single
Series:
3400 Harmon-i-Cut
