Features

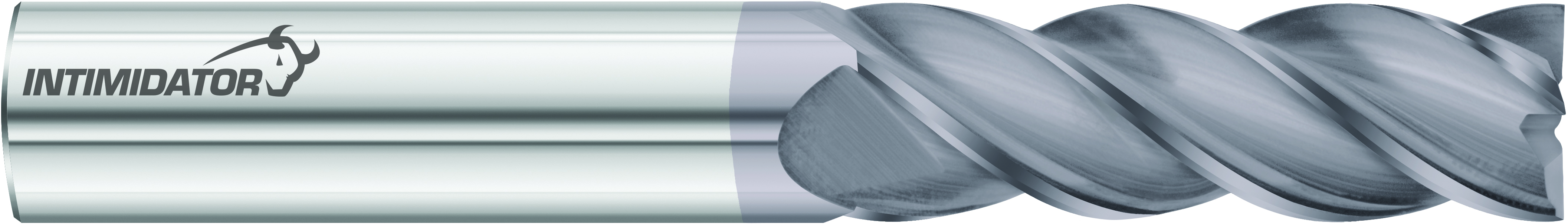

- The 3000 Intimidator is a 4-flute, high performance end mill designed for difficult to machine ferrous materials
- The 3000 Intimidator can be used in full slotting, roughing, and finishing applications and its specially designed flute relief and unequally spaced index provides chatter-free machining
- The 3000 Intimidator is stocked with FC-18 coating
Product Specifications
| Mill Diameter (Inch) | 1/2" |
| Cutting Flute Length (Inch) | 3" |
| Shank Diameter (Inch) | 1/2" |
| Overall Length (Inch) | 5" |
| Mill Diameter (Decimal Inch) | 0.5000" |
| Cutting Flute Length (Decimal Inch) | 3" |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Overall Length (Decimal Inch) | 5" |
| Mill Diameter (mm) | 12.70mm |
| Cutting Flute Length (mm) | 76.20mm |
| Shank Diameter (mm) | 12.70mm |
| Overall Length (mm) | 127mm |
| Finish/Coating | FC18 |
| Number of Flutes | 4 |
| Helix Angle | 38 Degree |
| Flute Spiral Direction | Right Hand Spiral |
| Cutting Direction | Right Hand Cutting |
| Coolant Thorugh (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Mill Diameter (Inch):
1/2"
Mill Diameter (Decimal Inch):
0.5000"
Mill Diameter (mm):
12.70mm
Number of Flutes:
4
Length of Cut (Inch):
3"
Length of Cut (Decimal Inch):
3"
Length of Cut (mm):
76.20mm
Material:
Solid Carbide
Finish/Coating:
FC18
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Application:
Difficult-to-Machine Ferrous Material
Single or Double End:
Single
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5"
Overall Length (mm):
127mm
Helix Angle:
38 Degree
Flute Direction:
Right
Cutting Direction:
Right
Series:
3000 Intimidator
