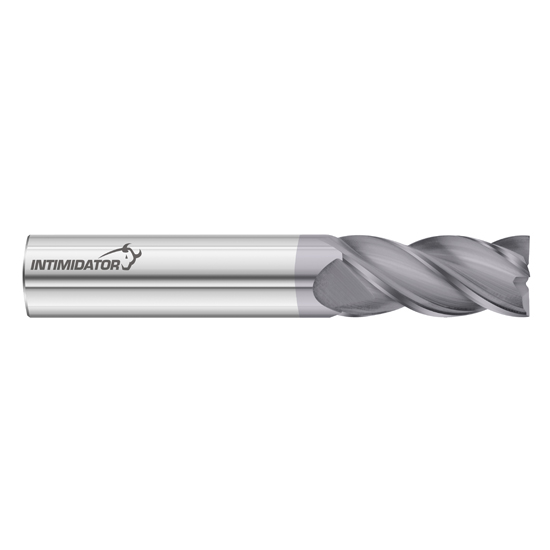

Fullerton Tool 34293 | 3/8" Diameter x 3/8" Shank x 7/8" LOC x 2-1/2" OAL 4 Flute FC18 Solid Carbide Square End Mill

$68.41 $43.10
(You save $25.31)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
3/8"
Number of Flutes:
4
Length of Cut (Inch):
7/8"
Length of Cut (Decimal Inch):
0.8750"
Length of Cut (mm):
22.23mm
Shank Diameter (inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Material:
Solid Carbide
Finish/Coating:
FC18
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Series:
3000 Intimidator
Ships:
From Partner Facility
SKU:
25004212
UPC:
Weight:
0.20 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 34293 | 3/8" Diameter x 3/8" Shank x 7/8" LOC x 2-1/2" OAL 4 Flute FC18 Solid Carbide Square End Mill

Features

  • The 3000 Intimidator is a 4-flute, high performance end mill designed for difficult to machine ferrous materials
  • The 3000 Intimidator can be used in full slotting, roughing, and finishing applications and its specially designed flute relief and unequally spaced index provides chatter-free machining
  • The 3000 Intimidator is stocked with FC-18 coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.3750"
Cutting Diameter (mm) 9.53mm
Cutting Diameter (Inch) 3/8"
Cutting Flute Length (Decimal Inch) 0.8750"
Cutting Flute Length (mm) 22.23mm
Cutting Flute Length (Inch) 7/8"
Shank Diameter (Decimal Inch) 0.3750"
Shank Diameter (mm) 9.53mm
Shank Diameter (Inch) 3/8"
Overall Length (Decimal Inch) 2.5000"
Overall Length (mm) 63.50mm
Overall Length (Inch) 2-1/2"
Coating/Finish FC18
Metric/Inch Inch
Number of Flutes 4
Helix Angle (Degrees) 38
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Square
End Type Character Designation S
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator SD
