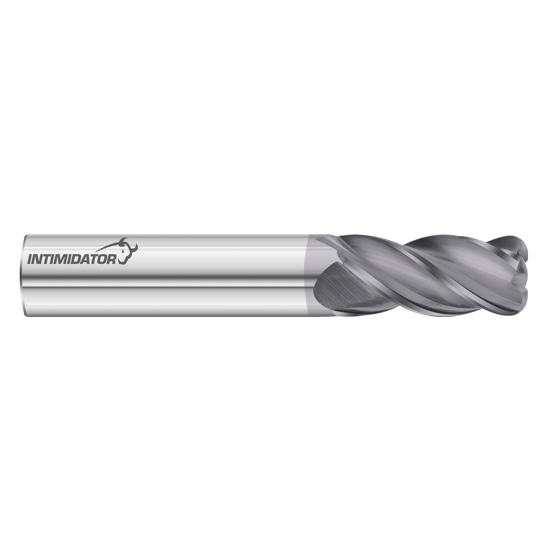

Fullerton Tool 34411 | 3/8" Diameter x 3/8" Shank x 7/8" LOC x 2-1/2" OAL 4 Flute FC18 Solid Carbide Radius End Mill

About This Item

Features

• The 3000 Intimidator is a 4-flute, high performance end mill designed for difficult to machine ferrous materials
• The 3000 Intimidator can be used in full slotting, roughing, and finishing applications and its specially designed flute relief and unequally spaced index provides chatter-free machining
• The 3000 Intimidator is stocked with FC-18 coating

Product Specifications

Cutting Diameter (Decimal Inch)	0.3750"
Cutting Diameter (mm)	9.53mm
Cutting Diameter (Inch)	3/8"
Cutting Flute Length (Decimal Inch)	0.8750"
Cutting Flute Length (mm)	22.23mm
Cutting Flute Length (Inch)	7/8"
Shank Diameter (Decimal Inch)	0.3750"
Shank Diameter (mm)	9.53mm
Shank Diameter (Inch)	3/8"
Overall Length (Decimal Inch)	2.5000"
Overall Length (mm)	63.50mm
Overall Length (Inch)	2-1/2"
Coating/Finish	FC18
Metric/Inch	Inch
Number of Flutes	4
Helix Angle (Degrees)	38
Flute Spiral Direction	Right Hand
Direction of Cut	Right Hand
Point End Type	Corner Radius
End Type Character Designation	R
Radius (Decimal Inch)	0.0300"
Radius (mm)	0.76mm
End Type	Single End
Coolant Through	Non Coolant Through
Weldon Flat	No
Length	Standard
Length Designator	SD
