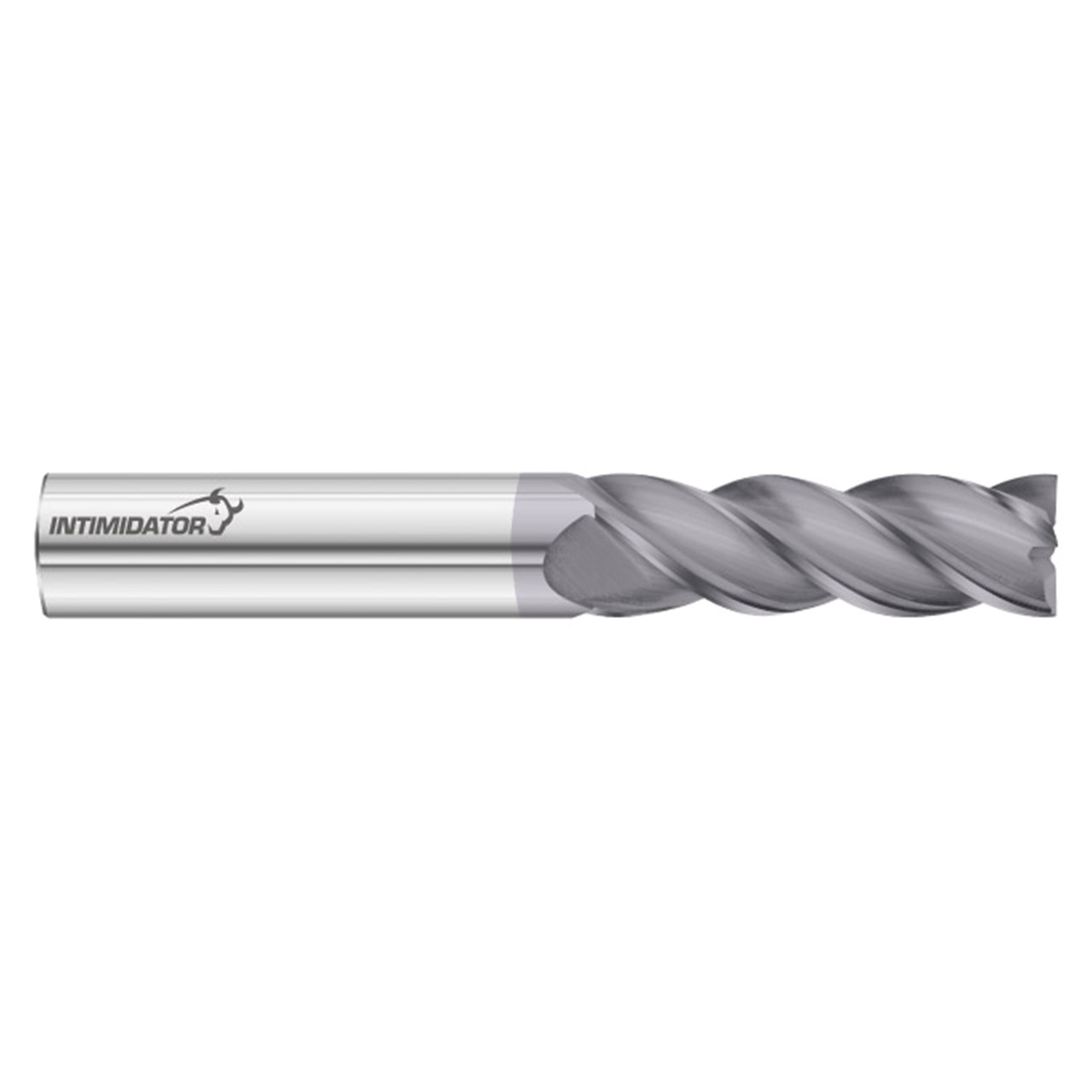

The 3000 Intimidator end mill is specifically designed to excel in slotting, roughing, and finishing applications in difficult-to-machine ferrous materials. Its specially designed flute relief and unequally spaced index provides chatter-free machining, and its eccentric relief provides a strong cutting edge on the tool. The 3000 Intimidator is a high-performance end mill with 4-flutes and is stocked with FC-18 coating, which provides wear resistance.
| Manufacturer Part Number | 34329 |
| Cutting Diameter (Inch) | 3/4" |
| Cutting Diameter (Decimal Inch) | 0.750" |
| Cutting Diameter (mm) | 19.05mm |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Cutting Flute Length (Inch) | 3" |
| Cutting Flute Length (Decimal Inch) | 3.000" |
| Cutting Flute Length (mm) | 76.20mm |
| Overall Length (Inch) | 6" |
| Overall Length (Decimal Inch) | 6.000" |
| Overall Length (mm) | 152.40mm |
| Number of Flutes | 4 |
| Helix Angle (Degree) | 38.00 Degree |
| Length | Extra-Long |
| Flute Spiral | Right Hand |
| Cutting Direction | Right Hand |
| End Type | Square |
| Coating | FC18 |
| Series | 3000 |
| Product Type | Square End Mill |
