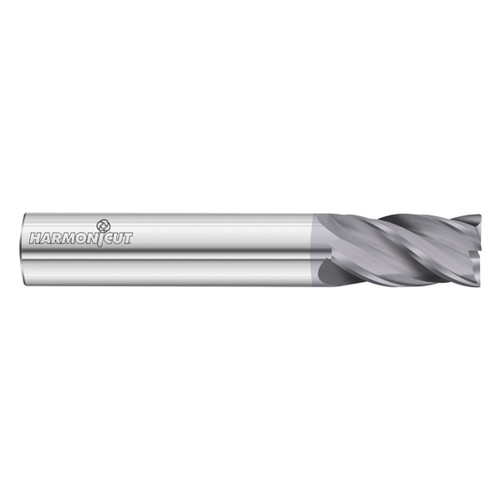

Fullerton Tool 34433 | 1" Diameter x 1" Shank x 1-1/2" LOC x 4" OAL 4 Flute FC18 Solid Carbide Radius End Mill

$295.56 $289.65
(You save $5.91)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
1"
Number of Flutes:
4
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.5000"
Length of Cut (mm):
38.10mm
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1"
Shank Diameter (mm):
25.40mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4"
Overall Length (mm):
101.60mm
Material:
Solid Carbide
Finish/Coating:
FC18
Single or Double End:
Single
Series:
3000 Intimidator
Ships:
From Partner Facility
interval quantity:
1
SKU:
25002886
UPC:
Weight:
1.34 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Fullerton Tool 34433 | 1" Diameter x 1" Shank x 1-1/2" LOC x 4" OAL 4 Flute FC18 Solid Carbide Radius End Mill

Related Products

Features

  • The 3000 Intimidator is a 4-flute, high performance end mill designed for difficult to machine ferrous materials
  • The 3000 Intimidator can be used in full slotting, roughing, and finishing applications and its specially designed flute relief and unequally spaced index provides chatter-free machining
  • The 3000 Intimidator is stocked with FC-18 coating

Product Specifications
Cutting Diameter (Decimal Inch) 1"
Cutting Diameter (mm) 25.40mm
Cutting Diameter (Inch) 1"
Cutting Flute Length (Decimal Inch) 1.5000"
Cutting Flute Length (mm) 38.10mm
Cutting Flute Length (Inch) 1-1/2"
Shank Diameter (Decimal Inch) 1"
Shank Diameter (mm) 25.40mm
Shank Diameter (Inch) 1"
Overall Length (Decimal Inch) 4.0000"
Overall Length (mm) 101.60mm
Overall Length (Inch) 4"
Coating/Finish FC18
Metric/Inch Inch
Number of Flutes 4
Helix Angle (Degrees) 38
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Corner Radius
End Type Character Designation R
Radius (Decimal Inch) 0.0600"
Radius (mm) 1.52mm
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat Yes
Length Standard
Length Designator SD
