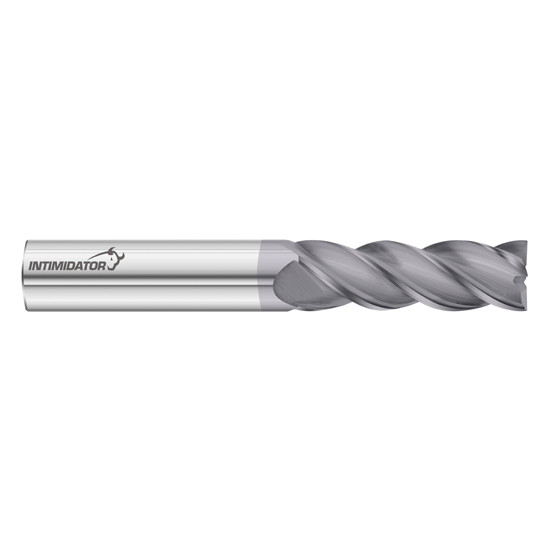

Fullerton Tool 34513 | 1/2" Diameter x 1/2" Shank x 1-1/4" LOC x 3" OAL 4 Flute FC18 Solid Carbide Square End Mill

About This Item

Features

• The 3000 Intimidator is a 4-flute, high performance end mill designed for difficult to machine ferrous materials
• The 3000 Intimidator can be used in full slotting, roughing, and finishing applications and its specially designed flute relief and unequally spaced index provides chatter-free machining
• The 3000 Intimidator is stocked with FC-18 coating

Product Specifications

Cutting Diameter (Decimal Inch)	0.5000"
Cutting Diameter (mm)	12.70mm
Cutting Diameter (Inch)	1/2"
Cutting Flute Length (Decimal Inch)	1.2500"
Cutting Flute Length (mm)	31.75mm
Cutting Flute Length (Inch)	1-1/4"
Shank Diameter (Decimal Inch)	0.5000"
Shank Diameter (mm)	12.70mm
Shank Diameter (Inch)	1/2"
Overall Length (Decimal Inch)	3.0000"
Overall Length (mm)	76.20mm
Overall Length (Inch)	3"
Coating/Finish	FC18
Metric/Inch	Inch
Number of Flutes	4
Helix Angle (Degrees)	38
Flute Spiral Direction	Right Hand
Direction of Cut	Right Hand
Point End Type	Square
End Type Character Designation	S
End Type	Single End
Coolant Through	Non Coolant Through
Weldon Flat	Yes
Length	Extra Long
Length Designator	XL
