Features

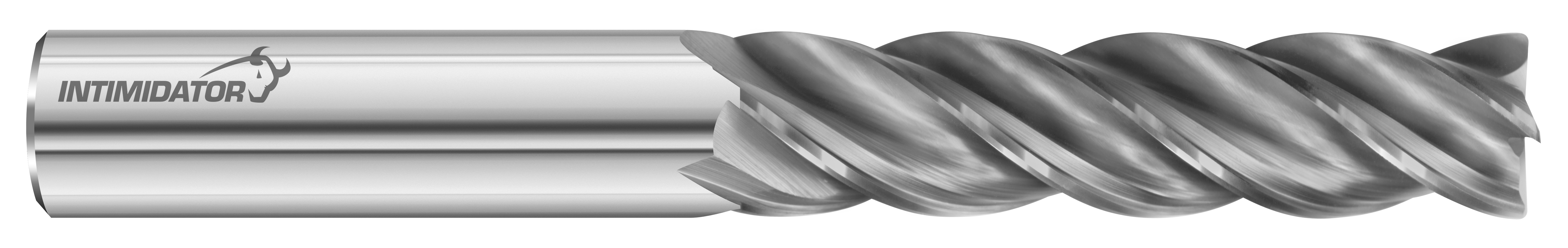

- The 3000 Intimidator is a 4-flute, high performance end mill designed for difficult to machine ferrous materials
- The 3000 Intimidator can be used in full slotting, roughing, and finishing applications and its specially designed flute relief and unequally spaced index provides chatter-free machining
- The 3000 Intimidator is stocked with FC-18 coating
Product Specifications
| Mill Diameter (Inch) | 3/4" |
| Cutting Flute Length (Inch) | 3" |
| Shank Diameter (Inch) | 3/4" |
| Overall Length (Inch) | 6" |
| Mill Diameter (Decimal Inch) | 0.7500" |
| Cutting Flute Length (Decimal Inch) | 3" |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Overall Length (Decimal Inch) | 6" |
| Mill Diameter (mm) | 19.05mm |
| Cutting Flute Length (mm) | 76.20mm |
| Shank Diameter (mm) | 19.05mm |
| Overall Length (mm) | 152.40mm |
| Radius (mm) | 1.52mm |
| Finish/Coating | FC18 |
| Number of Flutes | 4 |
| Helix Angle | 38 Degree |
| Flute Spiral Direction | Right Hand Spiral |
| Cutting Direction | Right Hand Cutting |
| Coolant Thorugh (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Mill Diameter (Inch):
3/4"
Mill Diameter (Decimal Inch):
0.7500"
Mill Diameter (mm):
19.05mm
Number of Flutes:
4
End Type:
Corner Radius
Corner Radius (mm):
1.52mm
Length of Cut (Inch):
3"
Length of Cut (Decimal Inch):
3"
Length of Cut (mm):
76.20mm
Material:
Solid Carbide
Finish/Coating:
FC18
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Application:
Difficult-to-Machine Ferrous Materials
Single or Double End:
Single
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6"
Overall Length (mm):
152.40mm
Series:
3000 Intimidator
Ships:
From Partner Facility
