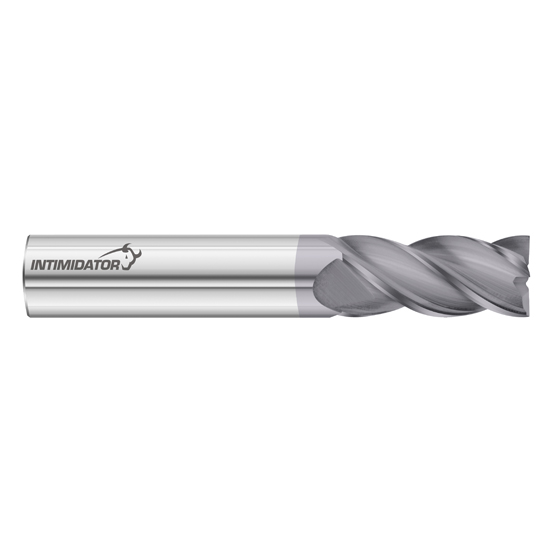

Fullerton Tool 34556 | 5/8" Diameter x 5/8" Shank x 3/4" LOC x 3-1/2" OAL 4 Flute FC18 Solid Carbide Square End Mill

About This Item

Features

• The 3000 Intimidator is a 4-flute, high performance end mill designed for difficult to machine ferrous materials
• The 3000 Intimidator can be used in full slotting, roughing, and finishing applications and its specially designed flute relief and unequally spaced index provides chatter-free machining
• The 3000 Intimidator is stocked with FC-18 coating

Product Specifications

Cutting Diameter (Decimal Inch)	0.6250"
Cutting Diameter (mm)	15.88mm
Cutting Diameter (Inch)	5/8"
Cutting Flute Length (Decimal Inch)	0.7500"
Cutting Flute Length (mm)	19.05mm
Cutting Flute Length (Inch)	3/4"
Shank Diameter (Decimal Inch)	0.6250"
Shank Diameter (mm)	15.88mm
Shank Diameter (Inch)	5/8"
Overall Length (Decimal Inch)	3.5000"
Overall Length (mm)	88.90mm
Overall Length (Inch)	3-1/2"
Coating/Finish	FC18
Metric/Inch	Inch
Number of Flutes	4
Helix Angle (Degrees)	38
Flute Spiral Direction	Right Hand
Direction of Cut	Right Hand
Point End Type	Square
End Type Character Designation	S
End Type	Single End
Coolant Through	Non Coolant Through
Weldon Flat	Yes
Length	Standard
Length Designator	SD
