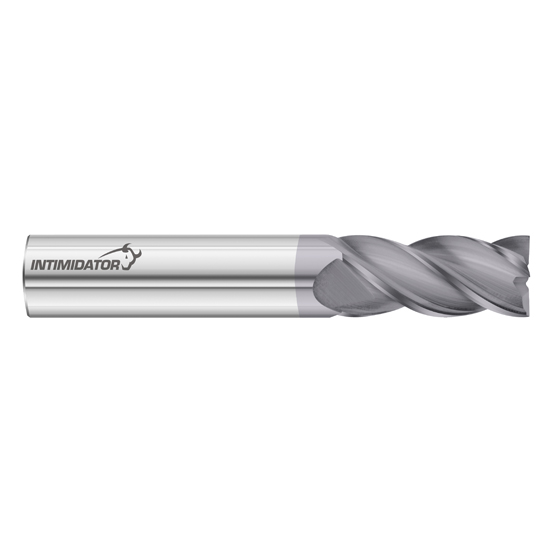

Fullerton Tool 34557 | 3/4" Diameter x 3/4" Shank x 7/8" LOC x 4" OAL 4 Flute FC18 Solid Carbide Square End Mill

About This Item

Features

• The 3000 Intimidator is a 4-flute, high performance end mill designed for difficult to machine ferrous materials
• The 3000 Intimidator can be used in full slotting, roughing, and finishing applications and its specially designed flute relief and unequally spaced index provides chatter-free machining
• The 3000 Intimidator is stocked with FC-18 coating

Product Specifications

Cutting Diameter (Decimal Inch)	0.7500"
Cutting Diameter (mm)	19.05mm
Cutting Diameter (Inch)	3/4"
Cutting Flute Length (Decimal Inch)	0.8750"
Cutting Flute Length (mm)	22.23mm
Cutting Flute Length (Inch)	7/8"
Shank Diameter (Decimal Inch)	0.7500"
Shank Diameter (mm)	19.05mm
Shank Diameter (Inch)	3/4"
Overall Length (Decimal Inch)	4.0000"
Overall Length (mm)	101.60mm
Overall Length (Inch)	4"
Coating/Finish	FC18
Metric/Inch	Inch
Number of Flutes	4
Helix Angle (Degrees)	38
Flute Spiral Direction	Right Hand
Direction of Cut	Right Hand
Point End Type	Square
End Type Character Designation	S
End Type	Single End
Coolant Through	Non Coolant Through
Weldon Flat	Yes
Length	Standard
Length Designator	SD
