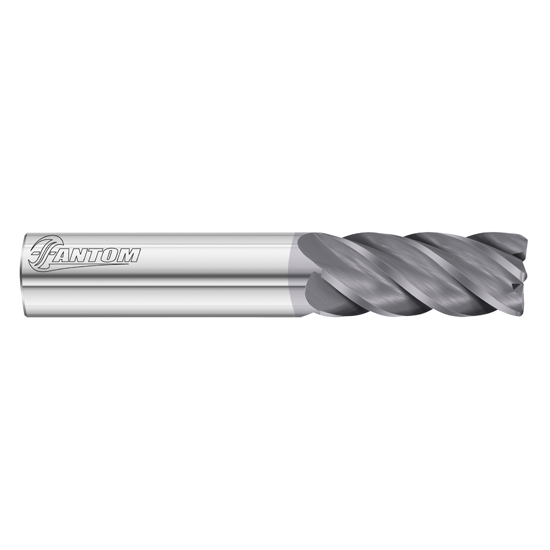

Fullerton Tool 34789 | 3/8" Diameter x 3/8" Shank x 1/2" LOC x 2-1/2" OAL 5 Flute FC18 Solid Carbide Radius End Mill

About This Item

Features

• The 3410 Fantom is a 5-flute, high performance end mill designed to excel in difficult to machine materials like steels, stainless steels, super alloys, and titanium
• Its variable index and eccentric relief provide a stable, robust cutter that allows heavier chip loads and produces superior part finishes
• The 3410 Fantom is stocked with FC-18 coating

Product Specifications

Cutting Diameter (Decimal Inch)	0.3750"
Cutting Diameter (mm)	9.53mm
Cutting Diameter (Inch)	3/8"
Cutting Flute Length (Decimal Inch)	0.5000"
Cutting Flute Length (mm)	12.70mm
Cutting Flute Length (Inch)	1/2"
Shank Diameter (Decimal Inch)	0.3750"
Shank Diameter (mm)	9.53mm
Shank Diameter (Inch)	3/8"
Overall Length (Decimal Inch)	2.5000"
Overall Length (mm)	63.50mm
Overall Length (Inch)	2-1/2"
Coating/Finish	FC18
Metric/Inch	Inch
Number of Flutes	5
Helix Angle (Degrees)	40
Flute Spiral Direction	Right Hand
Direction of Cut	Right Hand
Point End Type	Corner Radius
End Type Character Designation	R
Radius (Decimal Inch)	0.0300"
Radius (mm)	0.76mm
End Type	Single End
Coolant Through	Non Coolant Through
Weldon Flat	No
Length	Standard
Length Designator	SD
