Features

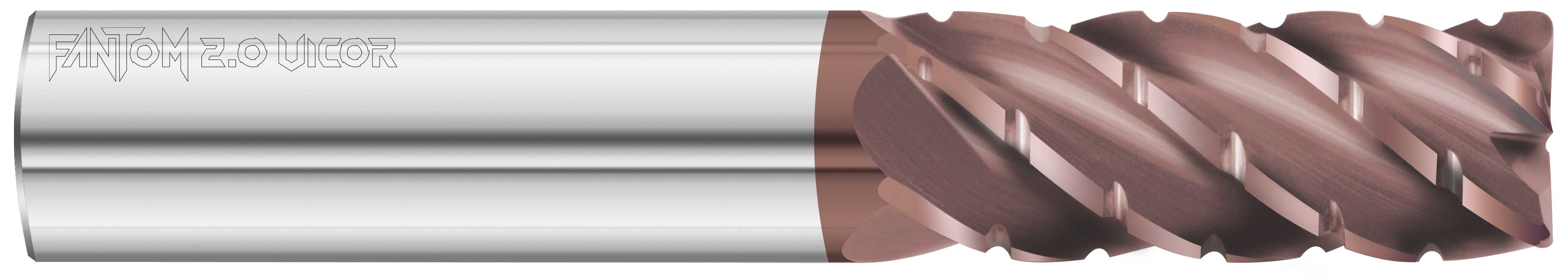

- The 3415 Fantom Vicor is a 5-flute, high performance end mill with chip breakers
- The chip breakers allow reduced cutting forces and provides excellent chip control when machining difficult to machine materials like steels, stainless steels, super alloys, and titanium
- The 3415 Fantom Vicor is stocked with FC-20 coating
Product Specifications
| Mill Diameter (Inch) | 3/4" |
| Cutting Flute Length (Inch) | 2-1/4" |
| Shank Diameter (Inch) | 3/4" |
| Overall Length (Inch) | 5" |
| Mill Diameter (Decimal Inch) | 0.7500" |
| Cutting Flute Length (Decimal Inch) | 2.2500" |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Overall Length (Decimal Inch) | 5" |
| Mill Diameter (mm) | 19.05mm |
| Cutting Flute Length (mm) | 57.15mm |
| Shank Diameter (mm) | 19.05mm |
| Overall Length (mm) | 127mm |
| Radius (mm) | 0.89mm |
| Finish/Coating | FC20 |
| Number of Flutes | 5 |
| Helix Angle | 40 Degree |
| Flute Spiral Direction | Right Hand Spiral |
| Cutting Direction | Right Hand Cutting |
| Coolant Thorugh (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Mill Diameter (Inch):
3/4"
Mill Diameter (Decimal Inch):
0.7500"
Mill Diameter (mm):
19.05mm
Number of Flutes:
5
End Type:
Corner Radius
Corner Radius (mm):
0.89mm
Length of Cut (Inch):
2-1/4"
Length of Cut (Decimal Inch):
2.2500"
Length of Cut (mm):
57.15mm
Material:
Solid Carbide
Finish/Coating:
FC20
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Application:
Steels, Stainless Steels, Super Alloys, and Titanium
Single or Double End:
Single
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5"
Overall Length (mm):
127mm
Series:
3415 Fantom Victor
Ships:
From Partner Facility
