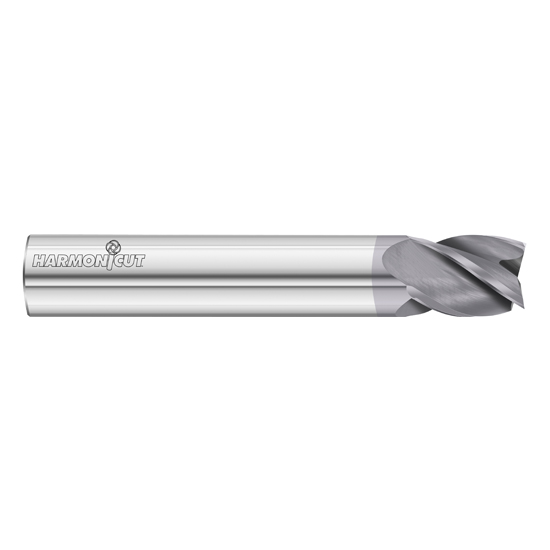

Fullerton Tool 34910 | 3/4" Diameter x 3/4" Shank x 7/8" LOC x 4" OAL 4 Flute FC18 Solid Carbide Square End Mill

$287.74 $181.28
(You save $106.46)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
3/4"
Number of Flutes:
4
Length of Cut (Inch):
7/8"
Length of Cut (Decimal Inch):
0.8750"
Length of Cut (mm):
22.23mm
Shank Diameter (inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Material:
Solid Carbide
Finish/Coating:
FC18
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Series:
3400 Harmon-i-Cut
Ships:
From Partner Facility
SKU:
25004160
UPC:
Weight:
0.40 LBS
Shipping:
Free Shipping
Fullerton Tool 34910 | 3/4" Diameter x 3/4" Shank x 7/8" LOC x 4" OAL 4 Flute FC18 Solid Carbide Square End Mill

Features

  • The 3400 Harmon-i-Cut is a 4-flute, high performance end mill designed for difficult to machine ferrous materials
  • It features a variable helix, variable index, and variable rake which maximizes tool life and removal rates by minimizing the effects of harmonics
  • The 3400 Harmon-i-Cut allows the capability to rough and finish with one tool and is stocked with FC-18 coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.7500"
Cutting Diameter (mm) 19.05mm
Cutting Diameter (Inch) 3/4"
Cutting Flute Length (Decimal Inch) 0.8750"
Cutting Flute Length (mm) 22.23mm
Cutting Flute Length (Inch) 7/8"
Shank Diameter (Decimal Inch) 0.7500"
Shank Diameter (mm) 19.05mm
Shank Diameter (Inch) 3/4"
Overall Length (Decimal Inch) 4.0000"
Overall Length (mm) 101.60mm
Overall Length (Inch) 4"
Coating/Finish FC18
Metric/Inch Inch
Number of Flutes 4
Helix Angle (Degrees) Variable
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Square
End Type Character Designation S
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Stub
Length Designator STB
