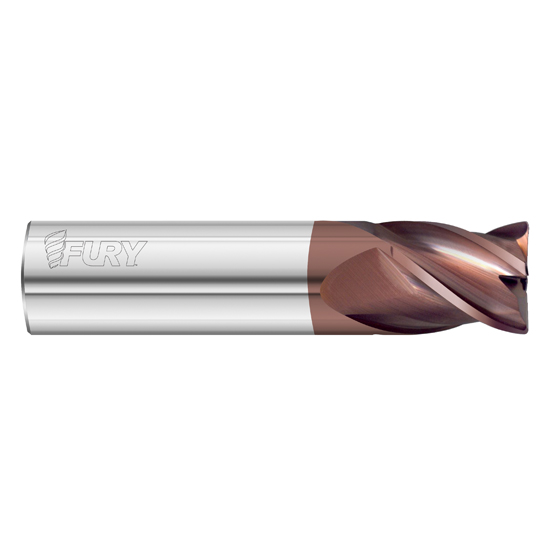

Fullerton Tool 35161 | 1/4" Diameter x 1/4" Shank x 3/8" LOC x 2" OAL 4 Flute FC20 Solid Carbide Radius End Mill

$38.12 $24.02
(You save $14.10)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
1/4"
Number of Flutes:
4
Length of Cut (Inch):
3/8"
Length of Cut (Decimal Inch):
0.3750"
Length of Cut (mm):
9.53mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2"
Overall Length (mm):
50.80mm
Material:
Solid Carbide
Finish/Coating:
FC20
Single or Double End:
Single
Series:
3500 Fury
Ships:
From Partner Facility
SKU:
25002560
UPC:
Weight:
0.08 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 35161 | 1/4" Diameter x 1/4" Shank x 3/8" LOC x 2" OAL 4 Flute FC20 Solid Carbide Radius End Mill

Features

  • The 3500 Fury is a 4-flute, high performance end mill that excels in stainless steels, super alloys, and titanium
  • It performs exceptionally in high-speed machining and full diameter milling as well as produces excellent surface finishes
  • Its tool versatility results in increased productivity, less tool changes, and longer tool life
  • The 3500 Fury is stocked with FC-20 coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.2500"
Cutting Diameter (mm) 6.35mm
Cutting Diameter (Inch) 1/4"
Cutting Flute Length (Decimal Inch) 0.3750"
Cutting Flute Length (mm) 9.53mm
Cutting Flute Length (Inch) 3/8"
Shank Diameter (Decimal Inch) 0.2500"
Shank Diameter (mm) 6.35mm
Shank Diameter (Inch) 1/4"
Overall Length (Decimal Inch) 2.0000"
Overall Length (mm) 50.80mm
Overall Length (Inch) 2"
Coating/Finish FC20
Metric/Inch Inch
Number of Flutes 4
Helix Angle (Degrees) Variable
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Corner Radius
End Type Character Designation R
Radius (Decimal Inch) 0.0200"
Radius (mm) 0.51mm
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Stub
Length Designator STB
