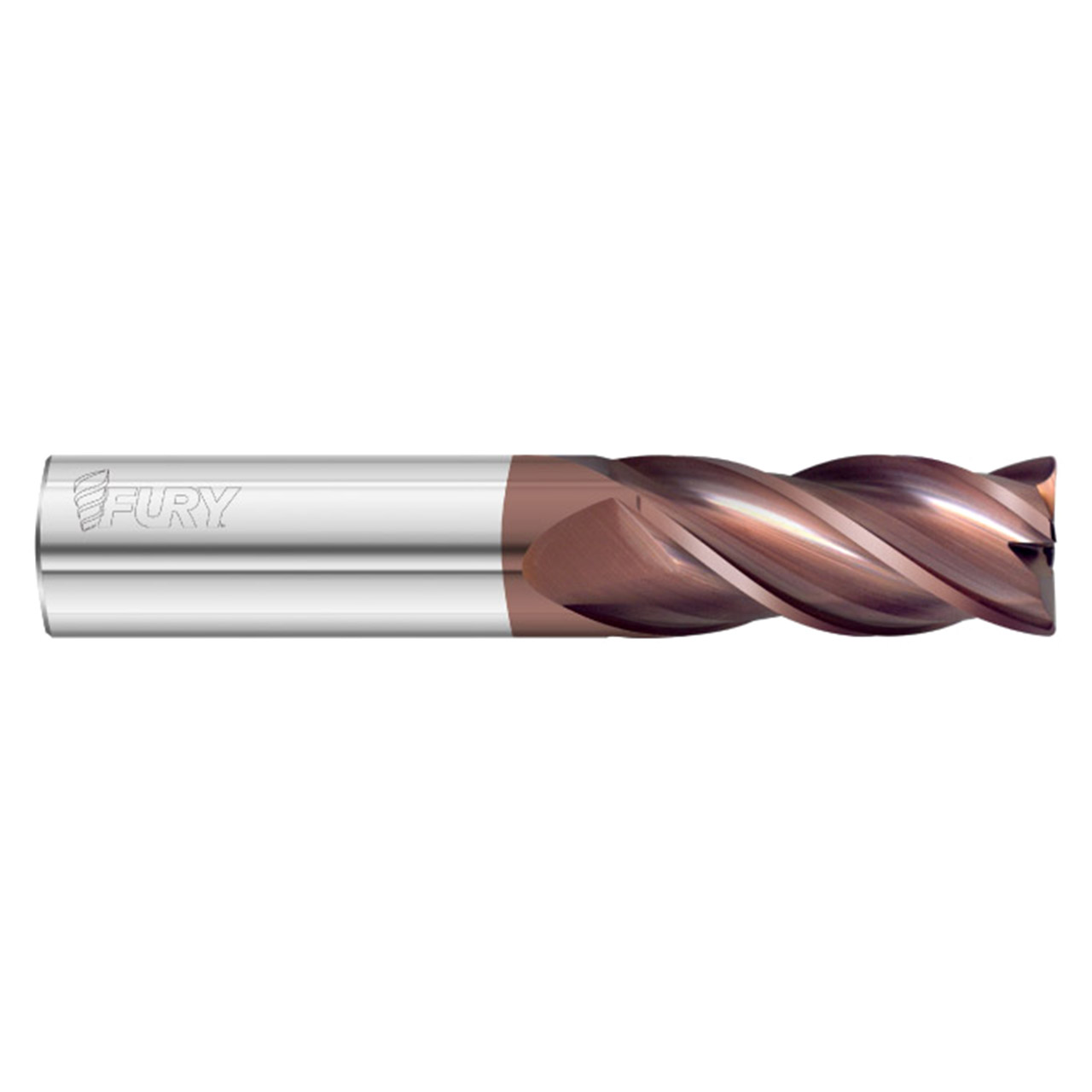

Machinists are in a hurry to get their hands on The fan-favorite 3500 Fury end mill. It performs exceptionally in high-speed machining and full diameter milling as well as produces excellent surface finishes. The Furys tool versatility results in increased productivity, fewer tool changes, and longer tool life. It also has a protected corner that helps prevent premature breakdown of a corner radius and a special drill edge that provides a stronger flute and aids in chip evacuation. It was designed to excel in stainless steels, steels, super alloys, and titanium. The 3500 Fury is a high-performance end mill with 4-flutes and is stocked with FC-20 coating, which provides high hardness, elasticity, oxidation, and low friction.
| Manufacturer Part Number | 35398 |
| Cutting Diameter (Inch) | 1/2" |
| Cutting Diameter (Decimal Inch) | 0.500" |
| Cutting Diameter (mm) | 12.70mm |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (mm) | 12.70mm |
| Cutting Flute Length (Inch) | 1" |
| Cutting Flute Length (Decimal Inch) | 1.000" |
| Cutting Flute Length (mm) | 25.40mm |
| Radius (Decimal Inch) | 0.090" |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.000" |
| Overall Length (mm) | 76.20mm |
| Number of Flutes | 4 |
| Length | Standard |
| Flute Spiral | Right Hand |
| Cutting Direction | Right Hand |
| End Type | Corner Radius |
| Coating | FC20 |
| Series | 3500 |
| Product Type | Corner Radius End Mill |
