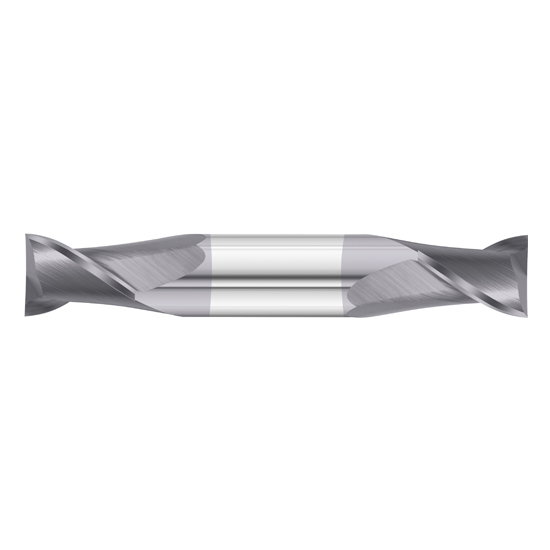

Fullerton Tool 36028 | 9/64" Diameter x 3/16" Shank x 5/16" LOC x 2" OAL 2 Flute TiAlN Solid Carbide Square End Mill

SKU: 25003491 Weight: 0.13 LBS Minimum Purchase: 1 unit
UPC:
$32.25
Ships: From Partner Facility
Shipping: Calculated at Checkout

About This Item

Features

  • The 3215 General Purpose end mill has 2-flutes and was designed for use in titanium, super alloys, stainless steels, steels, cast iron, brass & copper, and low si aluminum
  • It is offered in a variety of configurations and is available with single-end and double-end designs
  • The 3215 General Purpose end mill is stocked uncoated and with TiAlN, TiCN, and TiN coatings

Product Specifications
Cutting Diameter (Decimal Inch) 0.1406"
Cutting Diameter (mm) 3.57mm
Cutting Diameter (Inch) 9/64"
Cutting Flute Length (Decimal Inch) 0.3125"
Cutting Flute Length (mm) 7.94mm
Cutting Flute Length (Inch) 5/16"
Shank Diameter (Decimal Inch) 0.1875"
Shank Diameter (mm) 4.76mm
Shank Diameter (Inch) 3/16"
Overall Length (Decimal Inch) 2.0000"
Overall Length (mm) 50.80mm
Overall Length (Inch) 2"
Coating/Finish TIALN
Metric/Inch Inch
Number of Flutes 2
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Square
End Type Character Designation S
End Type Double End
Coolant Through Non Coolant Through
Weldon Flat No
Length Stub
Length Designator STB
