Features

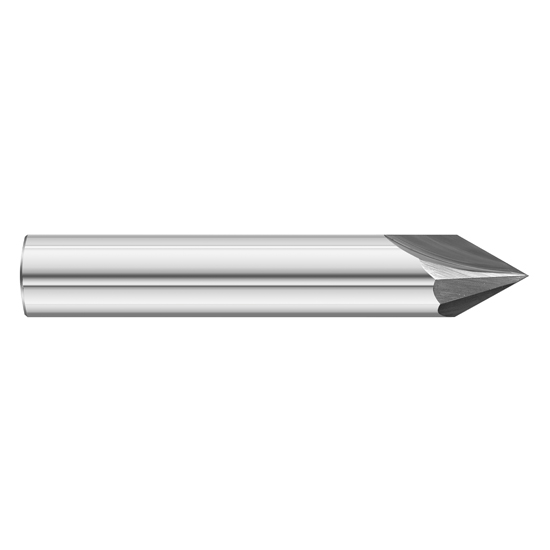

- The 3730 Chamfer Mill is a general performance end mill available with 2 or 4-flutes
- It was designed for deburring and chamfering in small grooves and holes
- It improves tool life and finish for profiling and chamfering of large features
- The 3730 Chamfer Mill is stocked uncoated and with TiAlN coating
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.7500" |
| Cutting Diameter (mm) | 19.05mm |
| Cutting Diameter (Inch) | 3/4" |
| Cutting Flute Length (Decimal Inch) | 0.6490" |
| Cutting Flute Length (mm) | 16.48mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (mm) | 19.05mm |
| Shank Diameter (Inch) | 3/4" |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (mm) | 101.60mm |
| Overall Length (Inch) | 4" |
| Non Cutting Tip (Decimal Inch) | 0.0450" |
| Non Cutting Tip (mm) | 1.14mm |
| Coating/Finish | Uncoated |
| Metric/Inch | Inch |
| Number of Flutes | 2 |
| Flute Spiral Direction | Straight |
| Direction of Cut | Right Hand |
| Point End Type | Chamfer |
| End Type Character Designation | C |
| Chamfer Angle (Degrees) | 60 |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
| Length | Standard |
| Length Designator | SD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Cutter Head Diameter (Inch):
3/4"
Cutter Head Diameter (Decimal Inch):
0.7500"
Cutter Head Diameter (mm):
19.05mm
Included Angle:
60°
Material:
Solid Carbide
Finish/Coating:
Uncoated
Overall Length (Inch):
4"
Overall Length (mm):
101.60mm
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Number of Flutes:
2
End Type:
Single End
Ships:
From Partner Facility
