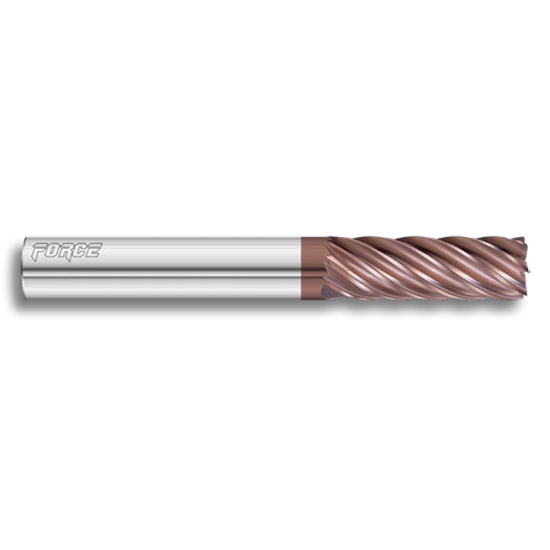

Fullerton Tool 36216 | 5/8" Diameter x 5/8" Shank x 1-7/8" LOC x 5" OAL 9 Flute FC20 Solid Carbide Radius End Mill

About This Item

Features

• The 3600 Force is a high performance end mill available with 5, 7, or 9-flutes
• It produces excellent surface finishes and chip control and its optimized geometry allows for high feed rates in stainless steels, super alloys, and titanium
• The 3600 Force is stocked with FC-20 coating

Product Specifications

Cutting Diameter (Decimal Inch)	0.6250"
Cutting Diameter (mm)	15.88mm
Cutting Diameter (Inch)	5/8"
Cutting Flute Length (Decimal Inch)	1.8750"
Cutting Flute Length (mm)	47.63mm
Cutting Flute Length (Inch)	1-7/8"
Shank Diameter (Decimal Inch)	0.6250"
Shank Diameter (mm)	15.88mm
Shank Diameter (Inch)	5/8"
Overall Length (Decimal Inch)	5.0000"
Overall Length (mm)	127.00mm
Overall Length (Inch)	5"
Coating/Finish	FC20
Metric/Inch	Inch
Number of Flutes	9
Helix Angle (Degrees)	Variable
Flute Spiral Direction	Right Hand
Direction of Cut	Right Hand
Point End Type	Corner Radius
End Type Character Designation	R
Radius (Decimal Inch)	0.0300"
Radius (mm)	0.76mm
End Type	Single End
Coolant Through	Non Coolant Through
Weldon Flat	No
Length	Extra Long
Length Designator	XL
