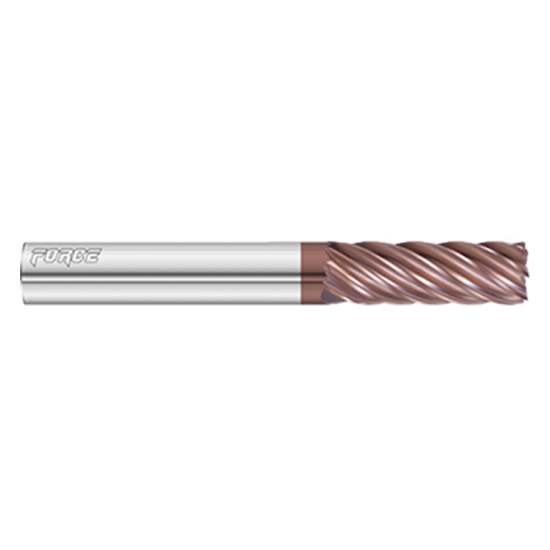

Fullerton Tool 36246 | 3/8" Diameter x 3/8" Shank x 3/4" LOC x 2-1/2" OAL 7 Flute FC20 Solid Carbide Square End Mill

About This Item

Features

• The 3600 Force is a high performance end mill available with 5, 7, or 9-flutes
• It produces excellent surface finishes and chip control and its optimized geometry allows for high feed rates in stainless steels, super alloys, and titanium
• The 3600 Force is stocked with FC-20 coating

Product Specifications

Cutting Diameter (Decimal Inch)	0.3750"
Cutting Diameter (mm)	9.52mm
Cutting Diameter (Inch)	3/8"
Cutting Flute Length (Decimal Inch)	0.7500"
Cutting Flute Length (mm)	19.05mm
Cutting Flute Length (Inch)	3/4"
Shank Diameter (Decimal Inch)	0.3750"
Shank Diameter (mm)	9.52mm
Shank Diameter (Inch)	3/8"
Overall Length (Decimal Inch)	2.5000"
Overall Length (mm)	63.50mm
Overall Length (Inch)	2-1/2"
Coating/Finish	FC20
Metric/Inch	Inch
Number of Flutes	7
Helix Angle (Degrees)	Variable
Flute Spiral Direction	Right Hand
Direction of Cut	Right Hand
Point End Type	Square
End Type Character Designation	S
End Type	Single End
Coolant Through	Non Coolant Through
Weldon Flat	No
Length	Standard
Length Designator	SD
