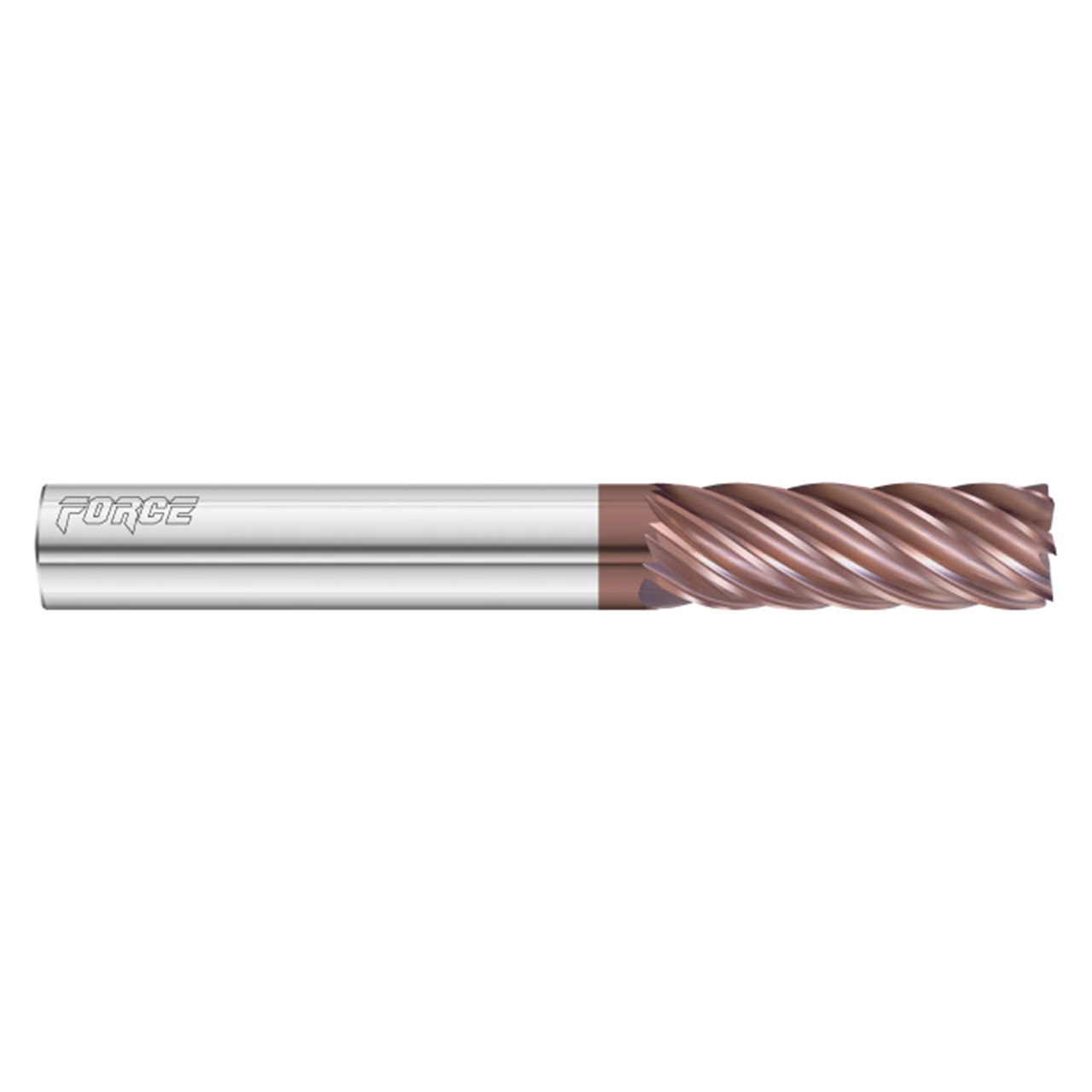

It produces excellent surface finishes and chip control, and its optimized geometry allows for high feed rates in stainless steels, super alloys, and titanium. The 3600 Force is a high-performance end mill with 7 flutes (based on diameter) and is stocked with FC-20 coating, which provides high hardness, elasticity, oxidation, and low friction.
Product Specifications
| Manufacturer Part Number | 36294 |
| Cutting Diameter (Decimal Inch) | 0.315" |
| Cutting Diameter (mm) | 8.00mm |
| Shank Diameter (Decimal Inch) | 0.315" |
| Shank Diameter (mm) | 8.00mm |
| Cutting Flute Length (Decimal Inch) | 1.181" |
| Cutting Flute Length (mm) | 30.00mm |
| Radius (Decimal Inch) | 0.079" |
| Overall Length (Decimal Inch) | 2.992" |
| Overall Length (mm) | 76.00mm |
| Number of Flutes | 7 |
| Length | Standard |
| Flute Spiral | Right Hand |
| Cutting Direction | Right Hand |
| End Type | Corner Radius |
| Coating | FC20 |
| Series | 3600 |
| Product Type | Corner Radius End Mill |
