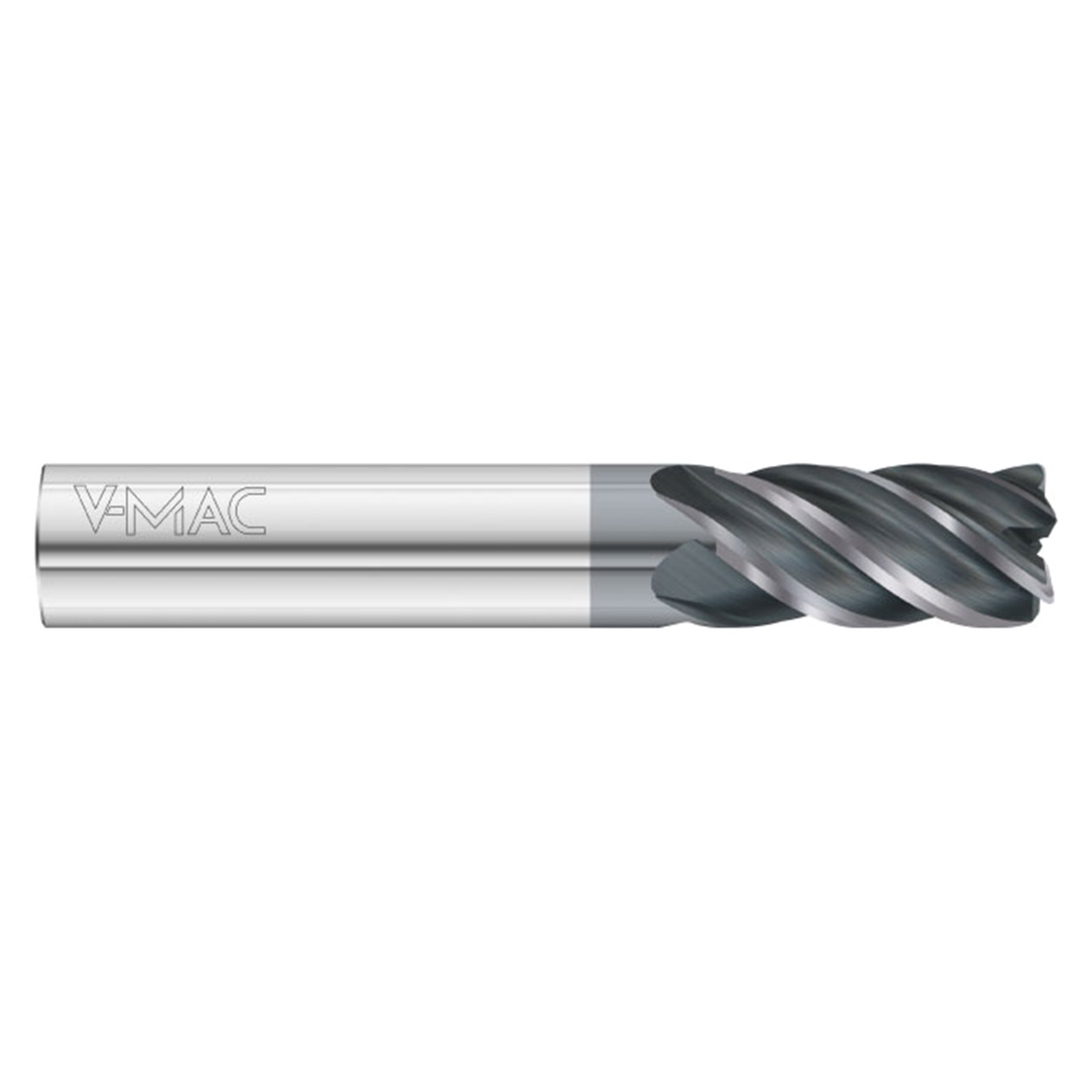

Its enhanced flute design improves chip control and reduces cutting forces allowing for aggressive speeds and feeds. Vibrations won't be an issue as its staggered flute geometry limits vibrations. The V-Mac has been manufactured for optimal tool stability and its engineered core provides robust axial strength. Its FC-21 coating resists fatigue and micro-chipping resulting in a consistent cutting edge. The 3125 V-Mac is a high-performance end mill with 5-flutes and stocked with FC-21 coating. Get started with The V-Mac today!
| Manufacturer Part Number | 36440 |
| Cutting Diameter (Inch) | 1/4" |
| Cutting Diameter (Decimal Inch) | 0.250" |
| Cutting Diameter (mm) | 6.35mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (mm) | 6.35mm |
| Cutting Flute Length (Inch) | 1" |
| Cutting Flute Length (Decimal Inch) | 1.000" |
| Cutting Flute Length (mm) | 25.40mm |
| Shank Length (Decimal Inch) | 2.000" |
| Shank Length (mm) | 50.80mm |
| Radius (Decimal Inch) | 0.015" |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.000" |
| Overall Length (mm) | 76.20mm |
| Number of Flutes | 5 |
| Length | Standard |
| Flute Spiral | Right Hand |
| Cutting Direction | Right Hand |
| End Type | Corner Radius |
| Coating | FC21 |
| Series | 3125 |
| Product Type | Corner Radius End Mill |
