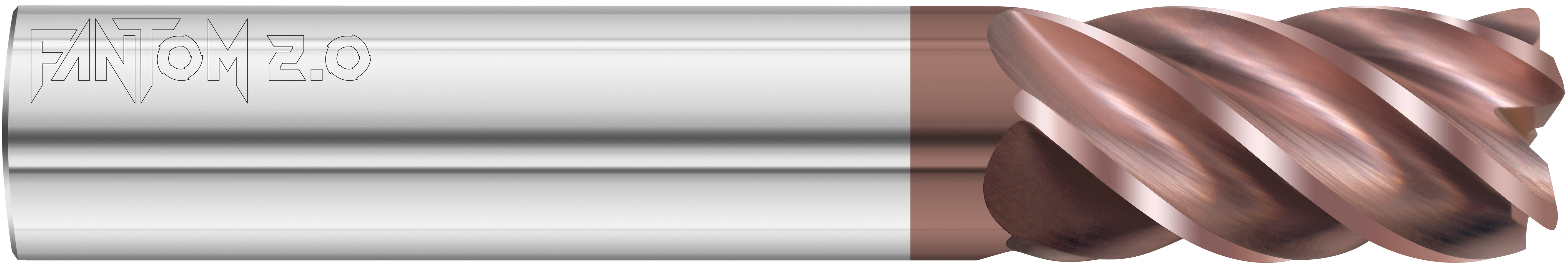

Fullerton Tool 37651 | 1/2" Diameter x 1/2" Shank x 2" LOC x 4" OAL 5 Flute FC20 Solid Carbide Corner Radius End Mill

$166.47 $104.88
(You save $61.59)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
1/2"
Mill Diameter (Decimal Inch):
0.5000"
Mill Diameter (mm):
12.70mm
Number of Flutes:
5
End Type:
Corner Radius
Corner Radius (mm):
1.52mm
Length of Cut (Inch):
2"
Length of Cut (Decimal Inch):
2"
Length of Cut (mm):
50.80mm
Material:
Solid Carbide
Finish/Coating:
FC20
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Application:
Steels, Stainless Steels, Super Alloys, and Titanium
Single or Double End:
Single
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4"
Overall Length (mm):
101.60mm
Series:
3412 Fantom 2.0
Ships:
From Partner Facility
SKU:
23007382
UPC:
Weight:
0.69 LBS
Shipping:
Free Shipping
Fullerton Tool 37651 | 1/2" Diameter x 1/2" Shank x 2" LOC x 4" OAL 5 Flute FC20 Solid Carbide Corner Radius End Mill

Features

  • The 3412 Fantom 2.0 is a 5-flute, high performance end mill designed to excel in difficult to machine materials like steels, stainless steels, super alloys, and titanium
  • Its variable index and eccentric relief provide a stable, robust cutter that allows heavier chip loads and its enhanced edge strength increases productivity and lowers costs per part
  • The 3412 Fantom 2.0 is stocked with FC-20 coating

Product Specifications
Mill Diameter (Inch) 1/2"
Cutting Flute Length (Inch) 2"
Shank Diameter (Inch) 1/2"
Overall Length (Inch) 4"
Mill Diameter (Decimal Inch) 0.5000"
Cutting Flute Length (Decimal Inch) 2"
Shank Diameter (Decimal Inch) 0.5000"
Overall Length (Decimal Inch) 4"
Mill Diameter (mm) 12.70mm
Cutting Flute Length (mm) 50.80mm
Shank Diameter (mm) 12.70mm
Overall Length (mm) 101.60mm
Radius (mm) 1.52mm
Finish/Coating FC20
Number of Flutes 5
Helix Angle 40 Degree
Flute Spiral Direction Right Hand Spiral
Cutting Direction Right Hand Cutting
Coolant Thorugh (Yes/No) No
