Features

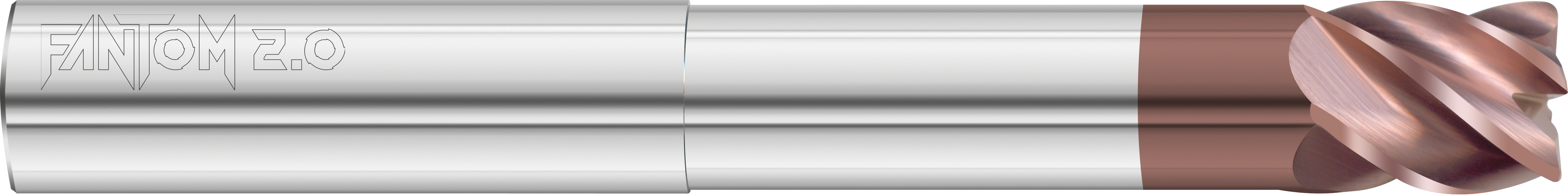

- The 3412 Fantom 2.0 is a 5-flute, high performance end mill designed to excel in difficult to machine materials like steels, stainless steels, super alloys, and titanium
- Its variable index and eccentric relief provide a stable, robust cutter that allows heavier chip loads and its enhanced edge strength increases productivity and lowers costs per part
- The 3412 Fantom 2.0 is stocked with FC-20 coating
Product Specifications
| Mill Diameter (Decimal Inch) | 0.4724" |
| Cutting Flute Length (Decimal Inch) | 0.7874" |
| Shank Diameter (Decimal Inch) | 0.4724" |
| Overall Length (Decimal Inch) | 3.9370" |
| Mill Diameter (mm) | 12mm |
| Cutting Flute Length (mm) | 20mm |
| Shank Diameter (mm) | 12mm |
| Overall Length (mm) | 100mm |
| Neck Diameter (mm) | 11.60mm |
| Reach (mm) | 54mm |
| Radius (mm) | 0.50mm |
| Finish/Coating | FC20 |
| Number of Flutes | 5 |
| Helix Angle | 40 Degree |
| Flute Spiral Direction | Right Hand Spiral |
| Cutting Direction | Right Hand Cutting |
| Coolant Thorugh (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Mill Diameter (Decimal Inch):
0.4724"
Mill Diameter (mm):
12.00mm
Number of Flutes:
5
End Type:
Corner Radius
Corner Radius (mm):
0.50mm
Length of Cut (Decimal Inch):
0.7874"
Length of Cut (mm):
20mm
Overall Reach (mm):
54mm
Material:
Solid Carbide
Finish/Coating:
FC20
Shank Diameter (Decimal Inch):
0.4724"
Shank Diameter (mm):
12.00mm
Application:
Steels, Stainless Steels, Super Alloys, and Titanium
Single or Double End:
Single
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100mm
Series:
3412 Fantom 2.0
Ships:
From Partner Facility
