Features

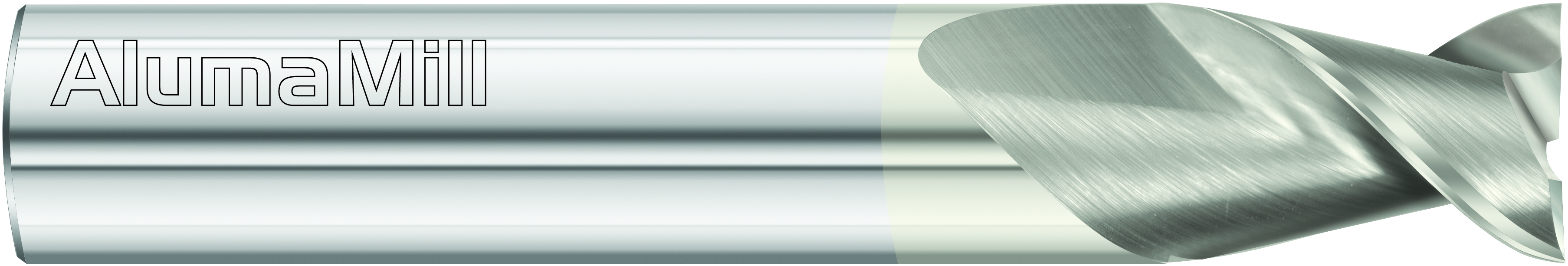

- The 3825 AlumaMill is a 2-flute, high performance end mill designed for aggressive material removal rates in aluminum and non-ferrous materials
- Its high polish and unique cylindrical margin design produces superior wall finishes
- The 3825 AlumaMill is stocked uncoated and with FC-19 coating
Product Specifications
| Mill Diameter (Inch) | 5/8" |
| Cutting Flute Length (Inch) | 1" |
| Shank Diameter (Inch) | 5/8" |
| Overall Length (Inch) | 3-1/2" |
| Mill Diameter (Decimal Inch) | 0.6250" |
| Cutting Flute Length (Decimal Inch) | 1" |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Overall Length (Decimal Inch) | 3.5000" |
| Mill Diameter (mm) | 15.88mm |
| Cutting Flute Length (mm) | 25.40mm |
| Shank Diameter (mm) | 15.88mm |
| Overall Length (mm) | 88.90mm |
| Finish/Coating | FC19 |
| Number of Flutes | 2 |
| Helix Angle | 45 Degree |
| Flute Spiral Direction | Right Hand Spiral |
| Cutting Direction | Right Hand Cutting |
| Coolant Thorugh (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Mill Diameter (Inch):
5/8"
Mill Diameter (Decimal Inch):
0.6250"
Mill Diameter (mm):
15.88mm
Number of Flutes:
2
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1"
Length of Cut (mm):
25.40mm
Material:
Solid Carbide
Finish/Coating:
FC19
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Application:
Aluminum and Non-Ferrous Materials
Single or Double End:
Single
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.90mm
Helix Angle:
45 Degree
Flute Direction:
Right
Cutting Direction:
Right
Series:
3825 AlumaMill
Ships:
From Partner Facility
IsDiscontinued:
