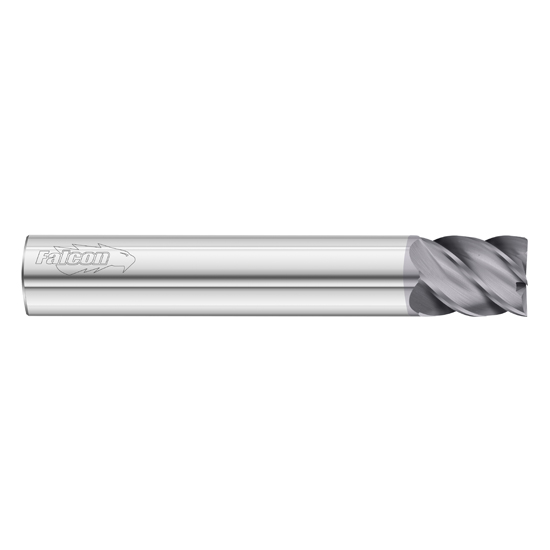

Fullerton Tool 38174 | 1/4" Diameter x 1/4" Shank x 1/2" LOC x 2" OAL 5 Flute TiAlN Solid Carbide Square End Mill

About This Item

Features

• The 3845 Falcon Finisher is a 5-flute, high performance end mill with eccentric relief which produces superior part finishes at extraordinary feed rates
• The 3845 Falcon Finisher is stocked uncoated and with TiAlN coating

Product Specifications

Cutting Diameter (Decimal Inch)	0.2500"
Cutting Diameter (mm)	6.35mm
Cutting Diameter (Inch)	1/4"
Cutting Flute Length (Decimal Inch)	0.5000"
Cutting Flute Length (mm)	12.70mm
Cutting Flute Length (Inch)	1/2"
Shank Diameter (Decimal Inch)	0.2500"
Shank Diameter (mm)	6.35mm
Shank Diameter (Inch)	1/4"
Overall Length (Decimal Inch)	2.0000"
Overall Length (mm)	50.80mm
Overall Length (Inch)	2"
Coating/Finish	TIALN
Metric/Inch	Inch
Number of Flutes	5
Helix Angle (Degrees)	45
Flute Spiral Direction	Right Hand
Direction of Cut	Right Hand
Point End Type	Square
End Type Character Designation	S
End Type	Single End
Coolant Through	Non Coolant Through
Weldon Flat	No
Length	Stub
Length Designator	STB
