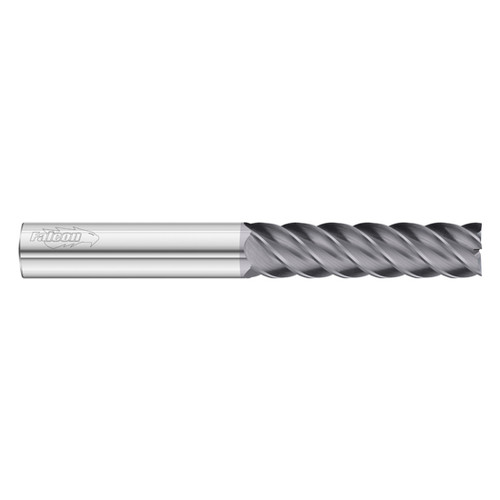

Fullerton Tool 38190 | 3/8" Diameter x 3/8" Shank x 3" LOC x 5" OAL 5 Flute TiAlN Solid Carbide Square End Mill

About This Item

Features

• The 3845 Falcon Finisher is a 5-flute, high performance end mill with eccentric relief which produces superior part finishes at extraordinary feed rates
• The 3845 Falcon Finisher is stocked uncoated and with TiAlN coating

Product Specifications

Cutting Diameter (Decimal Inch)	0.3750"
Cutting Diameter (mm)	9.53mm
Cutting Diameter (Inch)	3/8"
Cutting Flute Length (Decimal Inch)	3.0000"
Cutting Flute Length (mm)	76.20mm
Cutting Flute Length (Inch)	3"
Shank Diameter (Decimal Inch)	0.3750"
Shank Diameter (mm)	9.53mm
Shank Diameter (Inch)	3/8"
Overall Length (Decimal Inch)	5.0000"
Overall Length (mm)	127.00mm
Overall Length (Inch)	5"
Coating/Finish	TIALN
Metric/Inch	Inch
Number of Flutes	5
Helix Angle (Degrees)	45
Flute Spiral Direction	Right Hand
Direction of Cut	Right Hand
Point End Type	Square
End Type Character Designation	S
End Type	Single End
Coolant Through	Non Coolant Through
Weldon Flat	No
Length	Extra Long
Length Designator	XL
