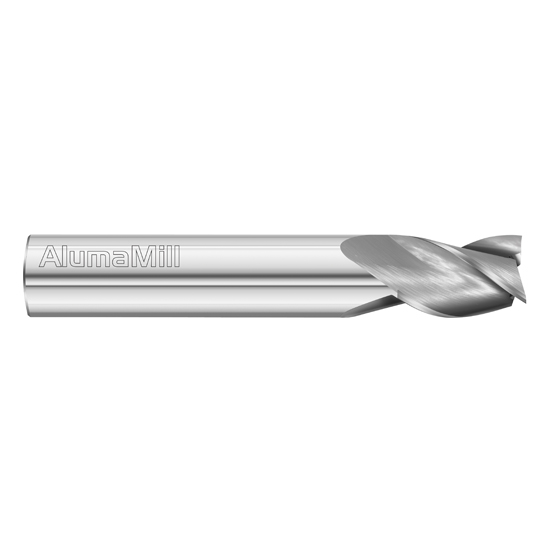

Fullerton Tool 38368 | 3/16" Diameter x 3/16" Shank x 5/16" LOC x 2" OAL 3 Flute Uncoated Solid Carbide Square End Mill

$27.53 $17.34
(You save $10.19)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
3/16"
Number of Flutes:
3
Length of Cut (Inch):
5/16"
Length of Cut (Decimal Inch):
0.3125"
Length of Cut (mm):
7.94mm
Shank Diameter (inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Series:
3835 AlumaMill
Ships:
From Partner Facility
SKU:
25003779
UPC:
Weight:
0.13 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 38368 | 3/16" Diameter x 3/16" Shank x 5/16" LOC x 2" OAL 3 Flute Uncoated Solid Carbide Square End Mill

Features

  • The 3835 AlumaMill is a 3-flute, high performance end mill designed for aggressive material removal rates in aluminum and non-ferrous materials
  • Its high polish and unique cylindrical margin design produces superior wall finishes
  • The 3835 AlumaMill is stocked uncoated and with FC-19 coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.1875"
Cutting Diameter (mm) 4.76mm
Cutting Diameter (Inch) 3/16"
Cutting Flute Length (Decimal Inch) 0.3125"
Cutting Flute Length (mm) 7.94mm
Cutting Flute Length (Inch) 5/16"
Shank Diameter (Decimal Inch) 0.1875"
Shank Diameter (mm) 4.76mm
Shank Diameter (Inch) 3/16"
Overall Length (Decimal Inch) 2.0000"
Overall Length (mm) 50.80mm
Overall Length (Inch) 2"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 3
Helix Angle (Degrees) 36
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Square
End Type Character Designation S
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Stub
Length Designator STB
