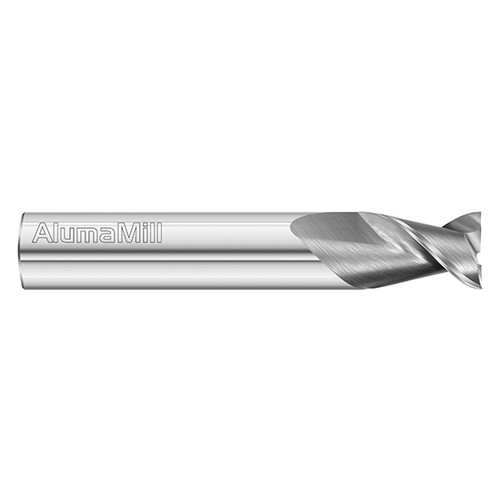

Fullerton Tool 38386 | 1/4" Diameter x 1/4" Shank x 2" LOC x 4" OAL 3 Flute Uncoated Solid Carbide Square End Mill

About This Item

Features

• The 3835 AlumaMill is a 3-flute, high performance end mill designed for aggressive material removal rates in aluminum and non-ferrous materials
• Its high polish and unique cylindrical margin design produces superior wall finishes
• The 3835 AlumaMill is stocked uncoated and with FC-19 coating

Product Specifications

Cutting Diameter (Decimal Inch)	0.2500"
Cutting Diameter (mm)	6.35mm
Cutting Diameter (Inch)	1/4"
Cutting Flute Length (Decimal Inch)	2.0000"
Cutting Flute Length (mm)	50.80mm
Cutting Flute Length (Inch)	2"
Shank Diameter (Decimal Inch)	0.2500"
Shank Diameter (mm)	6.35mm
Shank Diameter (Inch)	1/4"
Overall Length (Decimal Inch)	4.0000"
Overall Length (mm)	101.60mm
Overall Length (Inch)	4"
Coating/Finish	Uncoated
Metric/Inch	Inch
Number of Flutes	3
Helix Angle (Degrees)	36
Flute Spiral Direction	Right Hand
Direction of Cut	Right Hand
Point End Type	Square
End Type Character Designation	S
End Type	Single End
Coolant Through	Non Coolant Through
Weldon Flat	No
Length	Extra Long
Length Designator	XL



Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
