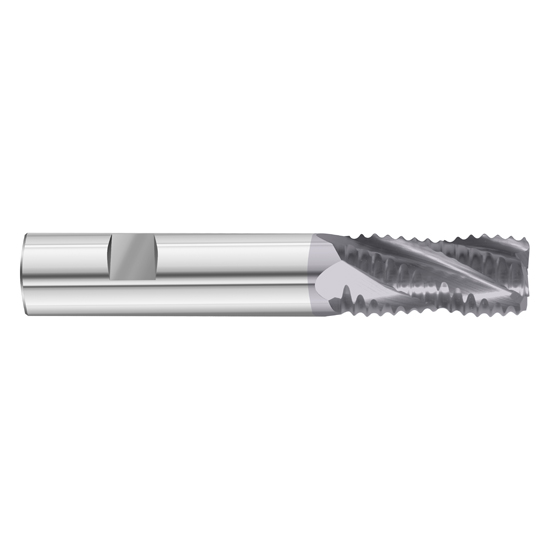

Fullerton Tool 39602 | 3/8" Diameter x 3/8" Shank x 1" LOC x 2-1/2" OAL 3 Flute TiAlN Solid Carbide Radius End Mill

$134.70 $84.86
(You save $49.84)

Out of stock

Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
3/8"
Number of Flutes:
3
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1"
Length of Cut (mm):
25.40mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Material:
Solid Carbide
Finish/Coating:
TiAlN
Single or Double End:
Single
Ships:
From Partner Facility
SKU:
25002860
UPC:
Weight:
0.22 LBS
Shipping:
Free Shipping
Fullerton Tool 39602 | 3/8" Diameter x 3/8" Shank x 1" LOC x 2-1/2" OAL 3 Flute TiAlN Solid Carbide Radius End Mill

Features

  • The 3975 Hogger is a high performance end mill available with 3, 4, or 5-flutes
  • It is designed as a rougher for high volume material removal in steels, steel alloys, stainless steels, and hardened steels
  • The 3975 Hogger is stocked with TiAlN coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.3750"
Cutting Diameter (mm) 9.53mm
Cutting Diameter (Inch) 3/8"
Cutting Flute Length (Decimal Inch) 1"
Cutting Flute Length (mm) 25.40mm
Cutting Flute Length (Inch) 1"
Shank Diameter (Decimal Inch) 0.3750"
Shank Diameter (mm) 9.53mm
Shank Diameter (Inch) 3/8"
Overall Length (Decimal Inch) 2.5000"
Overall Length (mm) 63.50mm
Overall Length (Inch) 2-1/2"
Coating/Finish TIALN
Metric/Inch Inch
Number of Flutes 3
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Corner Radius
End Type Character Designation R
Radius (Decimal Inch) 0.0470"
Radius (mm) 1.19mm
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat Yes
Length Standard
Length Designator SD
