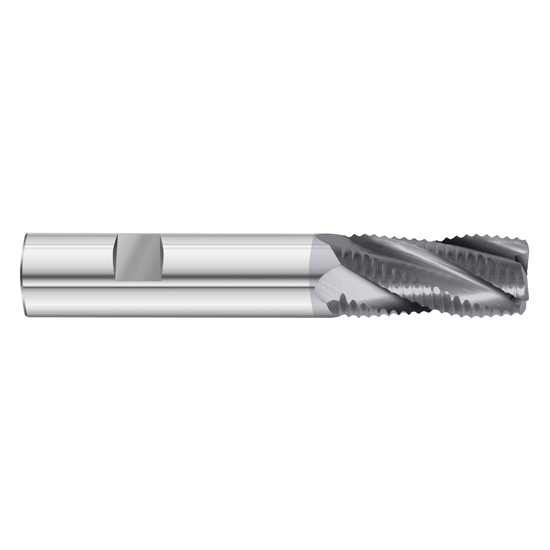

Fullerton Tool 39609 | 5/16" Diameter x 5/16" Shank x 13/16" LOC x 2-1/2" OAL 3 Flute TiAlN Solid Carbide Radius End Mill

About This Item

Features

• The 3995 Hogger is a high performance end mill available with 3, 4, or 5-flutes
• It is designed as a rougher for high volume material removal in titanium, inconel, waspaloy, and other difficult-to-machine aerospace alloys
• The 3995 Hogger is stocked with TiAlN coating

Product Specifications

Cutting Diameter (Decimal Inch)	0.3125"
Cutting Diameter (mm)	7.94mm
Cutting Diameter (Inch)	5/16"
Cutting Flute Length (Decimal Inch)	0.8125"
Cutting Flute Length (mm)	20.64mm
Cutting Flute Length (Inch)	13/16"
Shank Diameter (Decimal Inch)	0.3125"
Shank Diameter (mm)	7.94mm
Shank Diameter (Inch)	5/16"
Overall Length (Decimal Inch)	2.5000"
Overall Length (mm)	63.50mm
Overall Length (Inch)	2-1/2"
Coating/Finish	TIALN
Metric/Inch	Inch
Number of Flutes	3
Helix Angle (Degrees)	30
Flute Spiral Direction	Right Hand
Direction of Cut	Right Hand
Point End Type	Corner Radius
End Type Character Designation	R
Radius (Decimal Inch)	0.0390"
Radius (mm)	0.99mm
End Type	Single End
Coolant Through	Non Coolant Through
Weldon Flat	Yes
Length	Standard
Length Designator	SD
