Features

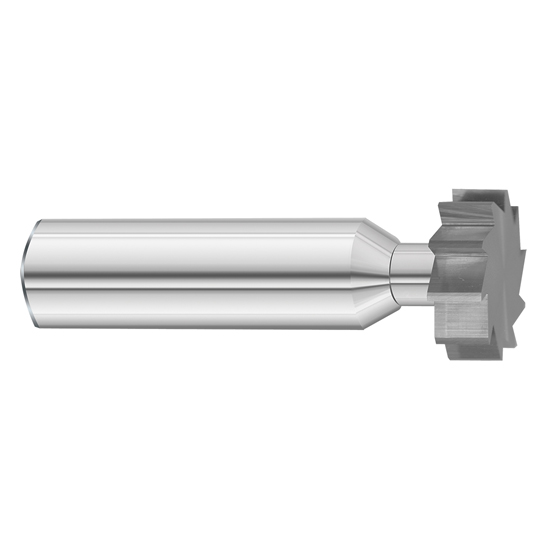

- The 4375 General Purpose Keyseat Cutter is designed for small engine manufacturing and automotive companies where narrow width slots are necessary
- They are available in a wide selection of standard sizes
- Special face widths are also available with our 24-hour just-in-time service
- The 4375 General Purpose Keyseat Cutter is stocked with 1/2" diameter steel shanks and uncoated
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.8750" |
| Cutting Diameter (mm) | 22.23mm |
| Cutting Diameter (Inch) | 7/8" |
| Diameter (American Standard) | 507 |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (mm) | 12.70mm |
| Shank Diameter (Inch) | 1/2" |
| Overall Length (Decimal Inch) | 2.1562" |
| Overall Length (mm) | 54.77mm |
| Overall Length (Inch) | 2-5/32" |
| Face Width (Decimal Inch) | 0.1562" |
| Face Width (mm) | 3.97mm |
| Face Width (Inch) | 5/32" |
| Coating/Finish | Uncoated |
| Metric/Inch | Inch |
| Number of Flutes | 12 |
| Flute Spiral Direction | Right Hand |
| Direction of Cut | Right Hand |
| Neck Diameter (Decimal Inch) | 0.2810" |
| Neck Diameter (mm) | 7.14mm |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Connection Type:
Shank
American Standard (ANSI):
507
Cutting Diameter (Inch):
7/8"
Cutting Diameter (Decimal Inch):
0.8750"
Cutting Diameter (mm):
22.23mm
Cutting Width (Inch):
5/32"
Cutting Width (Decimal Inch):
0.1562"
Tooth Configuration:
Straight
Material:
Carbide
Finish/Coating:
Uncoated
Shank Diameter (Inch):
1/2"
Shank Diameter (mm):
12.70mm
Ships:
From Partner Facility
IsDiscontinued:
