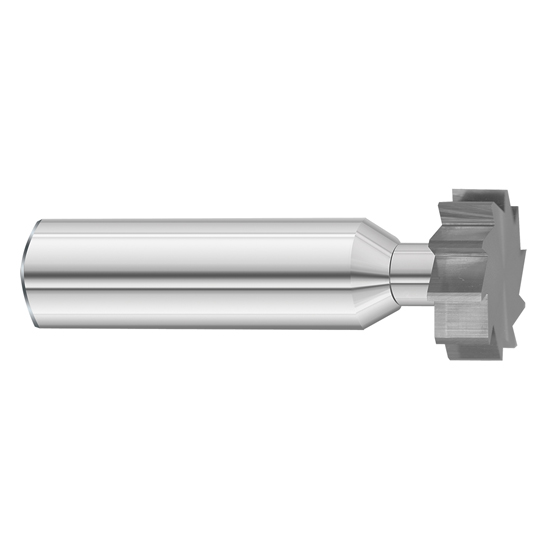

Fullerton Tool 43902 | 1/2" x 1/32" Keyseat Cutter

$115.95 $73.05
(You save $42.90)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Connection Type:
Shank
Cutting Diameter (Inch):
1/2"
Cutting Diameter (Decimal Inch):
0.5000"
Cutting Diameter (mm):
12.70mm
Cutting Width (Inch):
1/32"
Cutting Width (Decimal Inch):
0.0312"
Tooth Configuration:
Straight
Material:
Carbide
Finish/Coating:
Uncoated
Shank Diameter (Inch):
1/2"
Shank Diameter (mm):
12.70mm
Ships:
From Partner Facility
IsDiscontinued:
SKU:
25004470
UPC:
Weight:
0.11 LBS
Shipping:
Calculated at Checkout

Features

  • The 4375 General Purpose Keyseat Cutter is designed for small engine manufacturing and automotive companies where narrow width slots are necessary
  • They are available in a wide selection of standard sizes
  • Special face widths are also available with our 24-hour just-in-time service
  • The 4375 General Purpose Keyseat Cutter is stocked with 1/2" diameter steel shanks and uncoated

Product Specifications
Cutting Diameter (Decimal Inch) 0.5000"
Cutting Diameter (mm) 12.70mm
Cutting Diameter (Inch) 1/2"
Shank Diameter (Decimal Inch) 0.5000"
Shank Diameter (mm) 12.70mm
Shank Diameter (Inch) 1/2"
Overall Length (Decimal Inch) 2.0312"
Overall Length (mm) 51.59mm
Overall Length (Inch) 2-1/32"
Face Width (Decimal Inch) 0.0312"
Face Width (mm) 0.79mm
Face Width (Inch) 1/32"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 10
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Neck Diameter (Decimal Inch) 0.2500"
Neck Diameter (mm) 6.35mm
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
