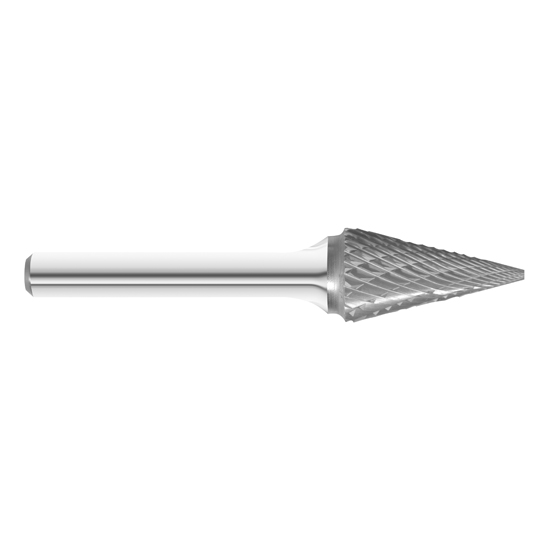

Fullerton Tool 47250 | 1/4" Diameter 1/4" Shank Single Cut Burr

$12.26 $12.01
(You save $0.25)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Head Shape:
Cone Flameape
Industry Specification:
SM-1
Tooth Style:
Single
Cutting Diameter (Inch):
1/4"
Cutting Diameter (Decimal Inch):
0.2500"
Cutting Diameter (mm):
6.35mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Head Material:
Solid Carbide
Ships:
From Partner Facility
interval quantity:
1
SKU:
45000484
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Fullerton Tool 47250 | 1/4" Diameter 1/4" Shank Single Cut Burr

Related Products

Features

  • Burrs, also known as rotary files, are designed to clean (deburr) castings
  • They are available in a wide range of shapes, sizes, and unique flute geometries
  • Industry standard forms SA, SB, SC, SD, SE, SF, SG, SM, SL, SH, SK, SJ, SN, and SNE are available as well as Single Cut, Double Cut, Chip Breaker, Diamond, and Fast Mill Cut end cuts
  • Burrs are stocked uncoated

Product Specifications
Cutting Diameter (Decimal Inch) 0.2500"
Cutting Diameter (mm) 6.35mm
Cutting Diameter (Inch) 1/4"
Cutting Flute Length (Decimal Inch) 0.5000"
Cutting Flute Length (mm) 12.70mm
Cutting Flute Length (Inch) 1/2"
Shank Diameter (Decimal Inch) 0.2500"
Shank Diameter (mm) 6.35mm
Shank Diameter (Inch) 1/4"
Overall Length (Decimal Inch) 2.0000"
Overall Length (mm) 50.80mm
Overall Length (Inch) 2"
Coating/Finish Uncoated
Metric/Inch Inch
Tool Number SM-1
Head Shape Cone Flameape
Cut Number 1
Cut Name Single
Number of Flutes 17
Helix Angle (Degrees) 25
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point Include Angle 22
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
