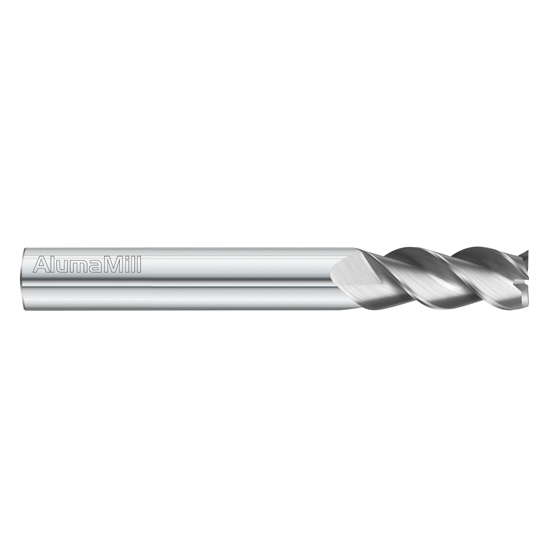

Fullerton Tool 92485 | 20.00mm Diameter x 20.00mm Shank x 63.00mm LOC x 150.00mm OAL 3 Flute Uncoated Solid Carbide Square End Mill

About This Item

Features

• The 3835 AlumaMill is a 3-flute, high performance end mill designed for aggressive material removal rates in aluminum and non-ferrous materials
• Its high polish and unique cylindrical margin design produces superior wall finishes
• The 3835 AlumaMill is stocked uncoated and with FC-19 coating

Product Specifications

Cutting Diameter (Decimal Inch)	0.7874"
Cutting Diameter (mm)	20.00mm
Cutting Flute Length (Decimal Inch)	2.4803"
Cutting Flute Length (mm)	63.00mm
Shank Diameter (Decimal Inch)	0.7874"
Shank Diameter (mm)	20.00mm
Overall Length (Decimal Inch)	5.9055"
Overall Length (mm)	150.00mm
Coating/Finish	Uncoated
Metric/Inch	Metric
Number of Flutes	3
Helix Angle (Degrees)	36
Flute Spiral Direction	Right Hand
Direction of Cut	Right Hand
Point End Type	Square
End Type Character Designation	S
End Type	Single End
Coolant Through	Non Coolant Through
Weldon Flat	No
Length	Extra Long
Length Designator	XL
