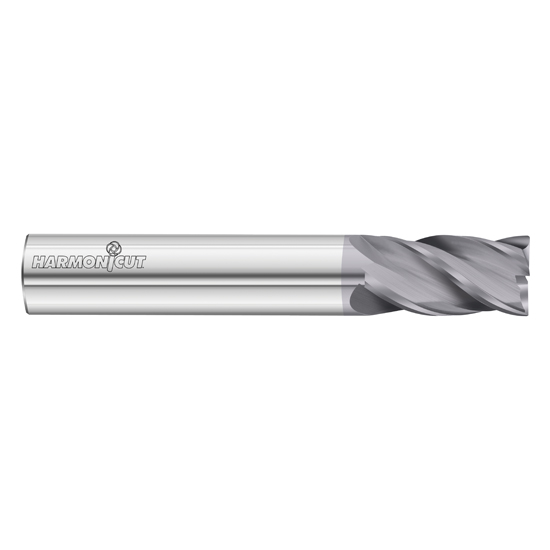

Fullerton Tool 92494 | 4mm Diameter x 4mm Shank x 14mm LOC x 50mm OAL 4 Flute FC18 Solid Carbide Radius End Mill

$34.85 $21.96
(You save $12.89)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (mm):
4mm
Number of Flutes:
4
Length of Cut (Decimal Inch):
0.5512"
Length of Cut (mm):
14mm
Shank Diameter (Decimal Inch):
0.1575"
Shank Diameter (mm):
4mm
Overall Length (Decimal Inch):
1.9685"
Overall Length (mm):
50mm
Material:
Solid Carbide
Finish/Coating:
FC18
Single or Double End:
Single
Series:
3400 Harmon-i-Cut
Ships:
From Partner Facility
SKU:
25002822
UPC:
Weight:
0.02 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 92494 | 4mm Diameter x 4mm Shank x 14mm LOC x 50mm OAL 4 Flute FC18 Solid Carbide Radius End Mill

Features

  • The 3400 Harmon-i-Cut is a 4-flute, high performance end mill designed for difficult to machine ferrous materials
  • It features a variable helix, variable index, and variable rake which maximizes tool life and removal rates by minimizing the effects of harmonics
  • The 3400 Harmon-i-Cut allows the capability to rough and finish with one tool and is stocked with FC-18 coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.1575"
Cutting Diameter (mm) 4.00mm
Cutting Flute Length (Decimal Inch) 0.5512"
Cutting Flute Length (mm) 14.00mm
Shank Diameter (Decimal Inch) 0.1575"
Shank Diameter (mm) 4.00mm
Overall Length (Decimal Inch) 1.9685"
Overall Length (mm) 50.00mm
Coating/Finish FC18
Metric/Inch Metric
Number of Flutes 4
Helix Angle (Degrees) Variable
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Corner Radius
End Type Character Designation R
Radius (Decimal Inch) 0.0079"
Radius (mm) 0.20mm
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator SD
