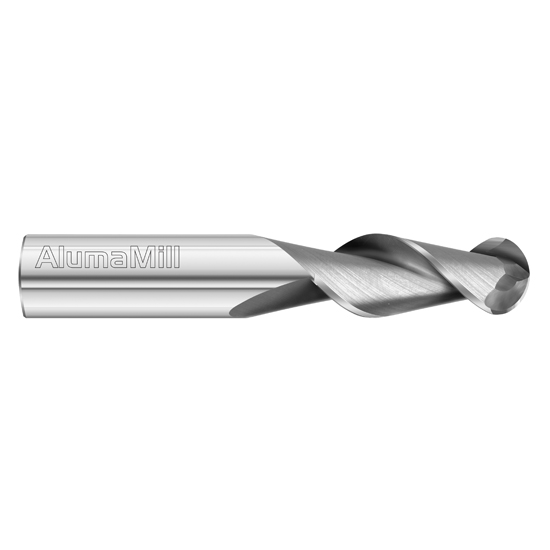

Fullerton Tool 92804 | 8mm Diameter x 8mm Shank x 20mm LOC x 64mm OAL 2 Flute Uncoated Solid Carbide Ball End Mill

$48.45 $30.52
(You save $17.93)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (mm):
8.00mm
Number of Flutes:
2
Length of Cut (Decimal Inch):
0.7874"
Length of Cut (mm):
20mm
Shank Diameter (Decimal Inch):
0.3150"
Shank Diameter (mm):
8mm
Overall Length (Decimal Inch):
2.5197"
Overall Length (mm):
64mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Single or Double End:
Single
Series:
3825 AlumaMill
Ships:
From Partner Facility
SKU:
25001459
UPC:
Weight:
0.20 LBS
Shipping:
Calculated at Checkout

Features

  • The 3825 AlumaMill is a 2-flute, high performance end mill designed for aggressive material removal rates in aluminum and non-ferrous materials
  • Its high polish and unique cylindrical margin design produces superior wall finishes
  • The 3825 AlumaMill is stocked uncoated and with FC-19 coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.3150"
Cutting Diameter (mm) 8.00mm
Cutting Flute Length (Decimal Inch) 0.7874"
Cutting Flute Length (mm) 20.00mm
Shank Diameter (Decimal Inch) 0.3150"
Shank Diameter (mm) 8.00mm
Overall Length (Decimal Inch) 2.5197"
Overall Length (mm) 64.00mm
Coating/Finish Uncoated
Metric/Inch Metric
Number of Flutes 2
Helix Angle (Degrees) 45
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Ball
End Type Character Designation B
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator SD
