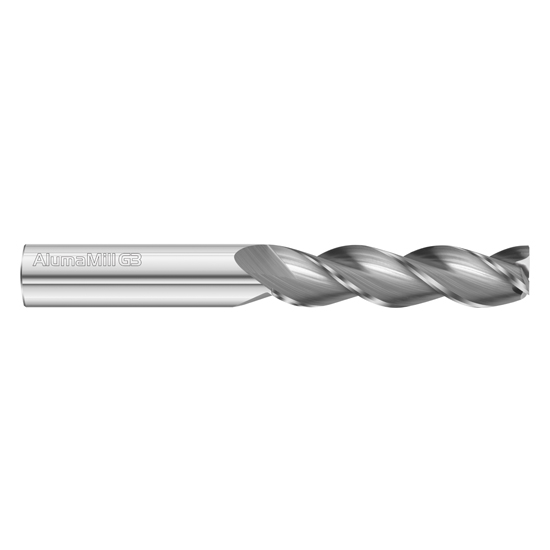

Fullerton Tool 93039 | 8mm Diameter x 8mm Shank x 50mm LOC x 100mm OAL 3 Flute Uncoated Solid Carbide Square End Mill

$76.62 $48.27
(You save $28.35)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (mm):
8.00mm
Number of Flutes:
3
Length of Cut (Decimal Inch):
1.9685"
Length of Cut (mm):
50mm
Shank Diameter (Decimal Inch):
0.3150"
Shank Diameter (mm):
8mm
Overall Length (mm):
100mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Series:
3833 AlumaMill G3
Ships:
From Partner Facility
SKU:
25003923
UPC:
Weight:
0.10 LBS
Shipping:
Calculated at Checkout

Features

  • The 3833 AlumaMill G3 is a 3-flute, high performance end mill designed for roughing and finishing aluminum and non-ferrous materials
  • It excels in aggressive plunging and ramping speed environments and was designed for fast material removal and multi-purpose machining
  • Its flute shape and relief form generates superior wall finishes, while its unique wiper geometry produces excellent floor finishes
  • The 3833 AlumMill G3 is stocked uncoated and with FC-5 coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.3150"
Cutting Diameter (mm) 8.00mm
Cutting Flute Length (Decimal Inch) 1.9685"
Cutting Flute Length (mm) 50.00mm
Shank Diameter (Decimal Inch) 0.3150"
Shank Diameter (mm) 8.00mm
Overall Length (Decimal Inch) 3.9370"
Overall Length (mm) 100.00mm
Coating/Finish Uncoated
Metric/Inch Metric
Number of Flutes 3
Helix Angle (Degrees) 37.5
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Square
End Type Character Designation S
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Extra Long
Length Designator XL
