Features

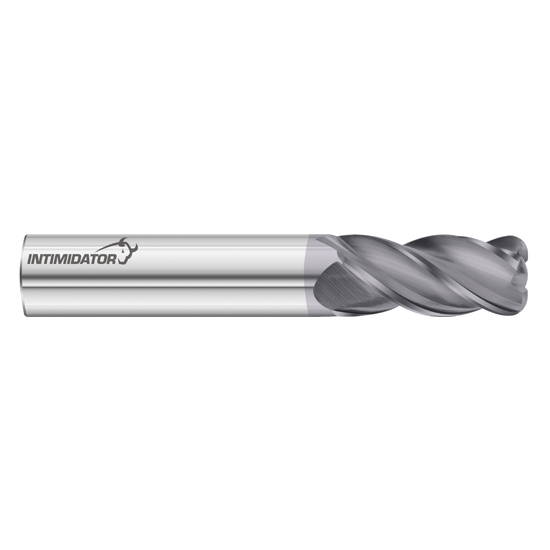

- The 3000 Intimidator is a 4-flute, high performance end mill designed for difficult to machine ferrous materials
- The 3000 Intimidator can be used in full slotting, roughing, and finishing applications and its specially designed flute relief and unequally spaced index provides chatter-free machining
- The 3000 Intimidator is stocked with FC-18 coating
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.3937" |
| Cutting Diameter (mm) | 10.00mm |
| Cutting Flute Length (Decimal Inch) | 0.9843" |
| Cutting Flute Length (mm) | 25.00mm |
| Shank Diameter (Decimal Inch) | 0.3937" |
| Shank Diameter (mm) | 10.00mm |
| Overall Length (Decimal Inch) | 2.5197" |
| Overall Length (mm) | 64.00mm |
| Coating/Finish | FC18 |
| Metric/Inch | Metric |
| Number of Flutes | 4 |
| Helix Angle (Degrees) | 38 |
| Flute Spiral Direction | Right Hand |
| Direction of Cut | Right Hand |
| Point End Type | Corner Radius |
| End Type Character Designation | R |
| Radius (Decimal Inch) | 0.0787" |
| Radius (mm) | 2.00mm |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
| Length | Standard |
| Length Designator | SD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Mill Diameter (mm):
10.00mm
Number of Flutes:
4
Length of Cut (Decimal Inch):
0.9843"
Length of Cut (mm):
25mm
Shank Diameter (Decimal Inch):
0.3937"
Shank Diameter (mm):
10.00mm
Overall Length (Decimal Inch):
2.5197"
Overall Length (mm):
64mm
Material:
Solid Carbide
Finish/Coating:
FC18
Single or Double End:
Single
Series:
3000 Intimidator
Ships:
From Partner Facility
