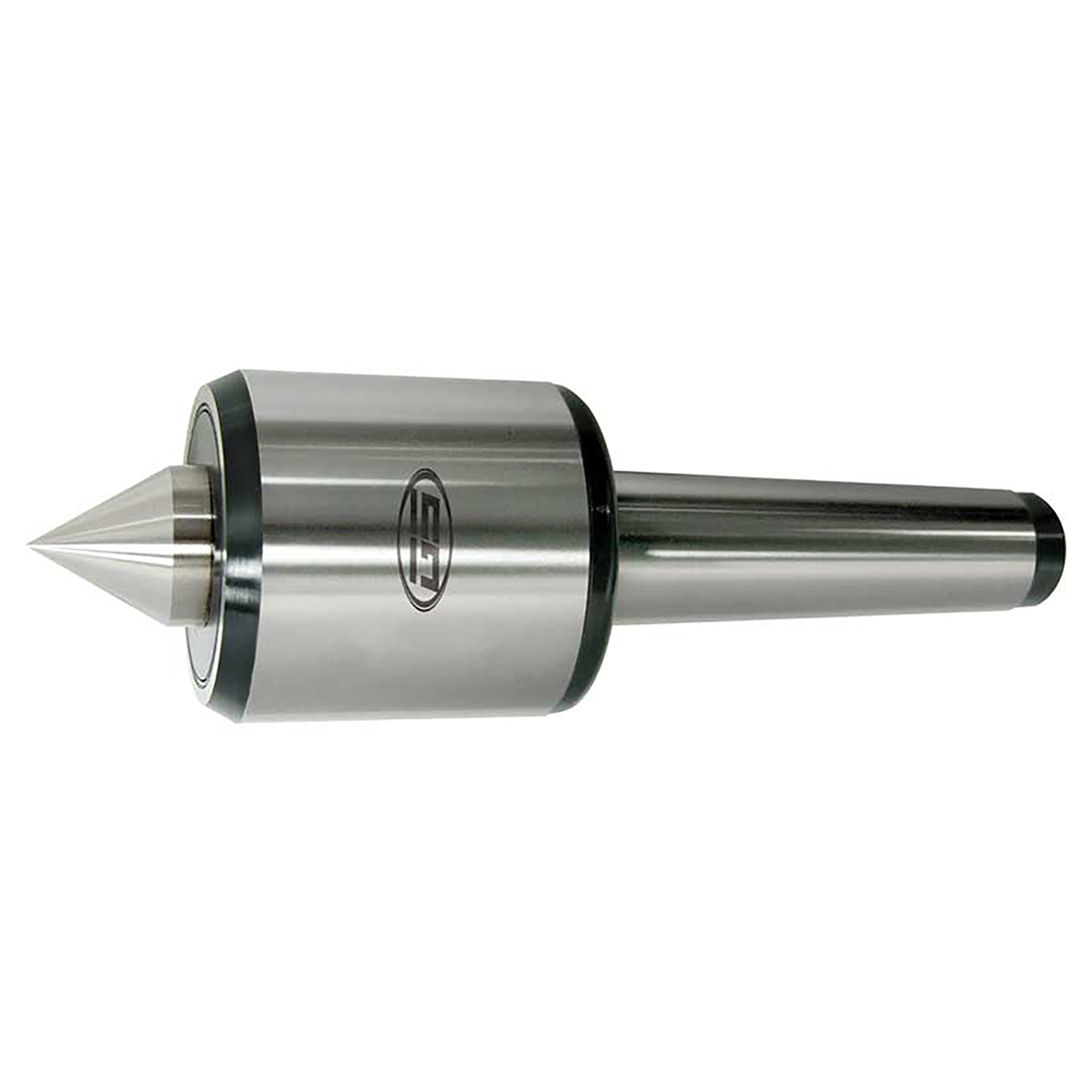

GS Tooling 311027 | MT5 Size Live Center

$582.52
SKU:
50009092
Weight:
9.40 LBS
Shipping:
Free Shipping
Features
  • Accuracy guaranteed to 0.002mm TIR (0.0001")
  • Excellent for grinders and CNC machines
  • Heat treated point to HRC 60±2
  • High RPM (up to 6,000)
  • Anti-friction seal for coolant deflection and high speed
  • Heat treated body for extra strength, rigidity, and long life
  • Shaft borehole for easy, efficient dismounting
  • Drop forged body (HRC50±2) for long life
  • 60 degree point angle
  • Five Bearing System: A double row angular contact bearing, two single row angular contact bearings, and a rear needle roller bearing combine to provide improved runout, greater stability, longer tool life, and superior performance

Product Specifications
Manufacturer Part Number311027
Shank TypeTaper Shank
Taper SizeMT5
Maximum Workpiece Weight (kg)2000kg
Product TypeLive Center
