Features
- Accuracy guaranteed to 0.002mm TIR (0.0001")
- Excellent for grinders and CNC machines
- Heat treated point to HRC 60±2
- High RPM (up to 6,000)
- Anti-friction seal for coolant deflection and high speed
- Heat treated body for extra strength, rigidity, and long life
- Shaft borehole for easy, efficient dismounting
- Drop forged body (HRC50±2) for long life
- 60 degree point angle
- Five Bearing System: A double row angular contact bearing, two single row angular contact bearings, and a rear needle roller bearing combine to provide improved runout, greater stability, longer tool life, and superior performance
Product Specifications
| Manufacturer Part Number | 311034 |
| Shank Type | Taper Shank |
| Taper Size | MT3 |
| Maximum Workpiece Weight (kg) | 1200kg |
| Point Diameter (mm) | 19mm |

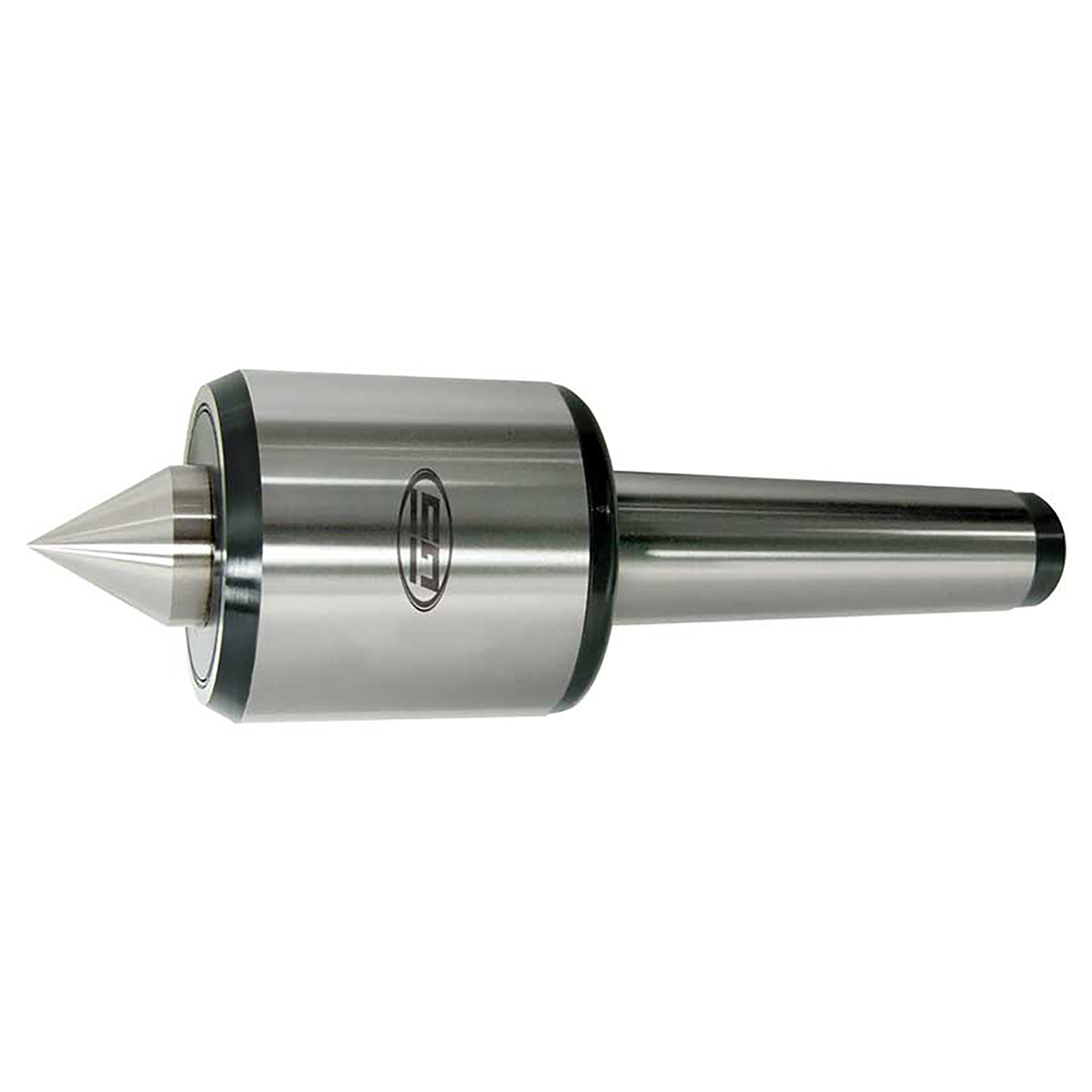

| Product Type | Live Center |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
GS Tooling
Diameter (Inch):
3/4"
Diameter (Decimal Inch):
0.7480"
Diameter (mm):
19.00mm
