Features

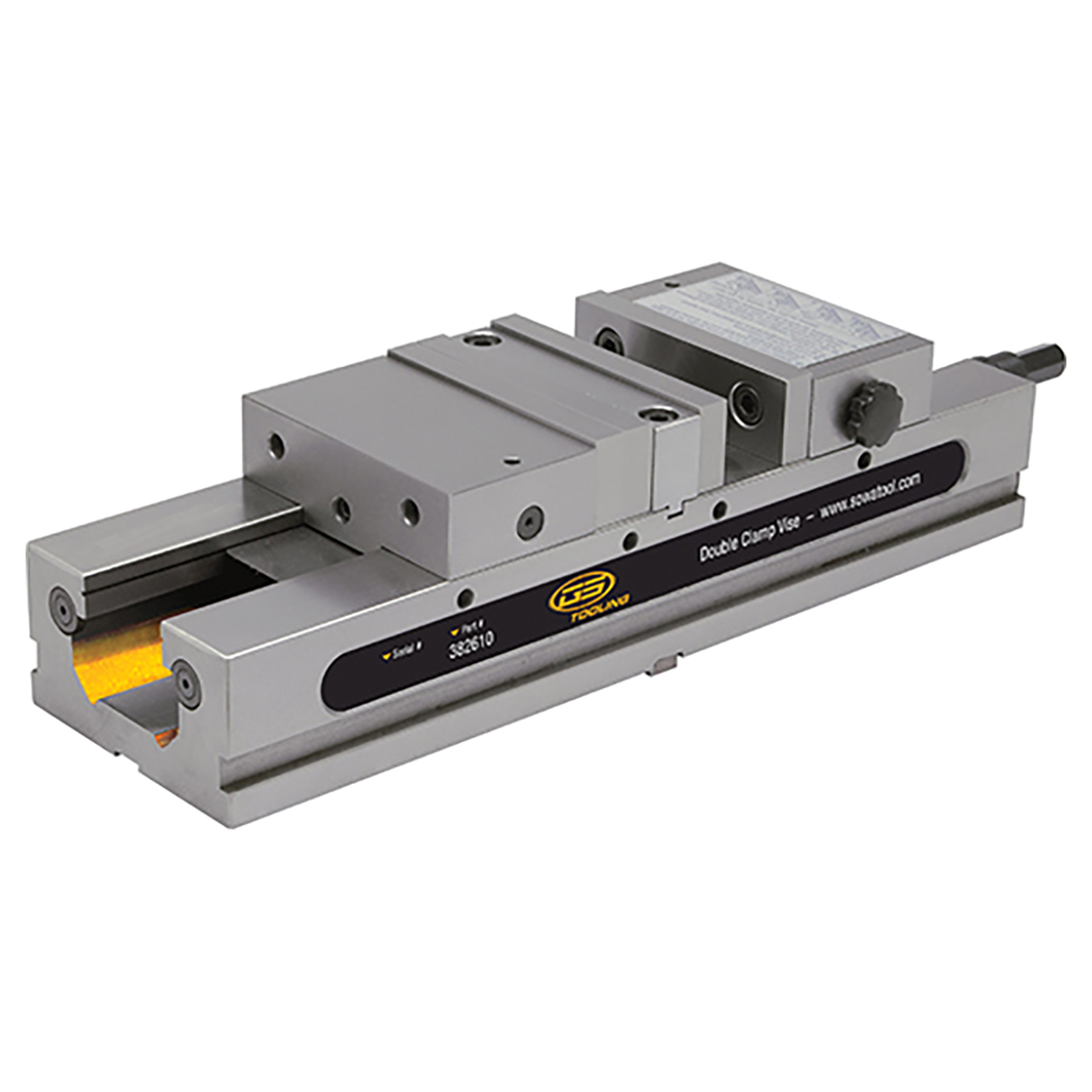

- Double clamp set-one handle can simultaneously operate two moveable jaws and clamps 2 workpieces of same or different size or one large workpiece
- This model can increase efficiency and productivity of CNC machines
- The movable jaw ANTI-LIFT mechanism provides alignment to workpiece without jaw lift
- There are 6 kinds of clamping ways to meet workpieces of different shapes and sizes
- The whole body is precisely ground and height tolerance is within ± 0.025mm (±0.001"), therefore several vises can be lined up for production
- The vise is made of FDC-80.000 PSI (55kg/cm2) Ductile iron, and slide ways are hardened to HRC45
- The rigid construction prevents base distortion
- Precision made to high accuracy standard
Product Specifications
| Manufacturer Part Number | 382610 |
| Jaw Width (Inch) | 4" |
| Orientation Type | Horizontal |
| Number of Stations | 2 |
| Base Motion Type | Stationary |
| Jaw Opening Capacity (mm) | 2 X 90mm |
| Operation Type | Manual |
| Jaw Height (mm) | 33mm |
| Model Number | TLD-40G/HV |
| Base Length (mm) | 405mm |
| Overall Length (mm) | 430mm |
| Overall Width (mm) | 104mm |
| Overall Height (mm) | 101.5mm |
| Product Type | Double Clamp Vise |
