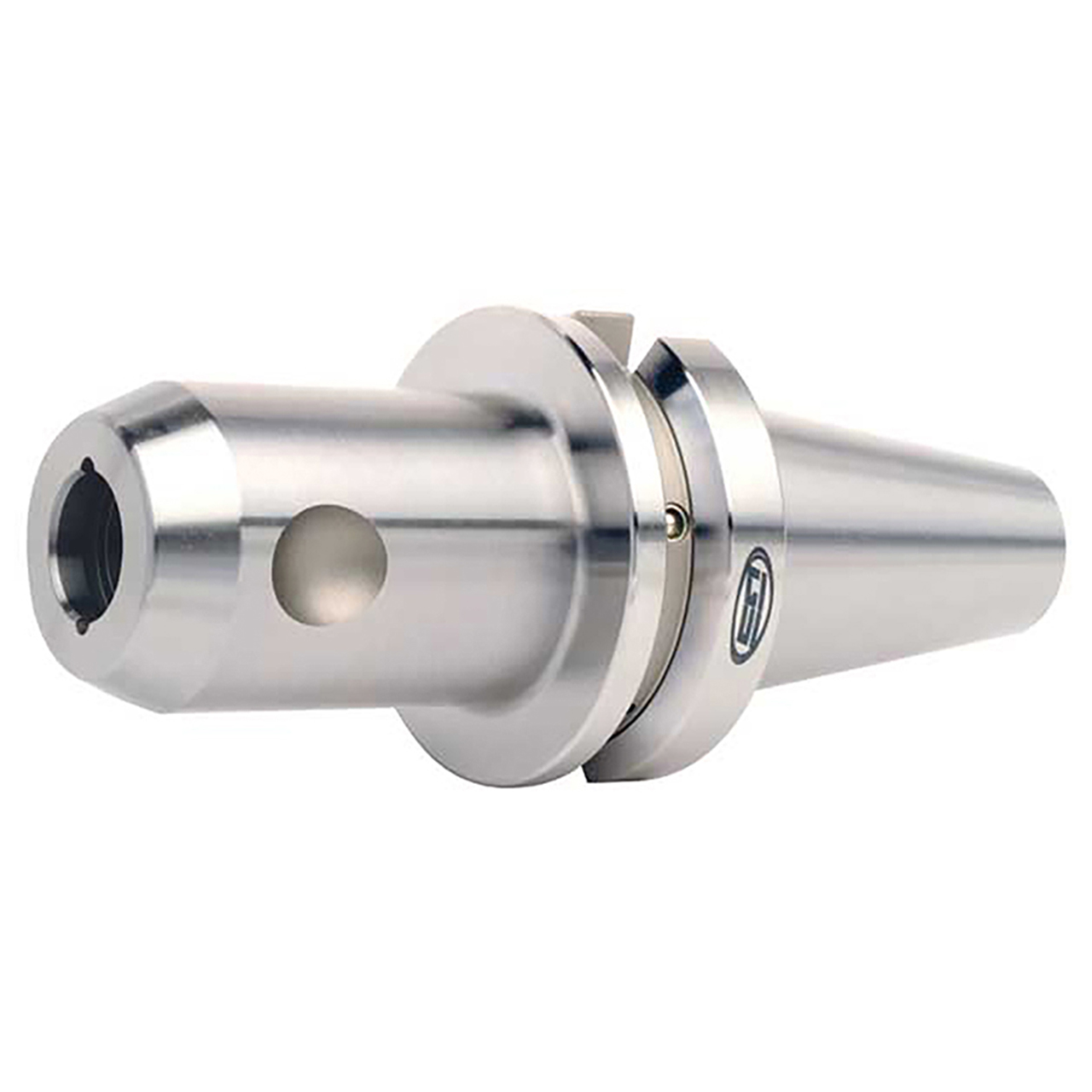

Features
- Now 3 coolant options all in one!
- Coolant through the spindle
- DIN Coolant through the flange option
- Coolant through the body
- All ground body
- Premium balanced to 30,000 RPM
- Comes complete with certificate
Product Specifications
| Manufacturer Part Number | 522278 |
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Hole Diameter (Inch) | 3/4" |
| Nose Diameter (Decimal Inch) | 1.89" |
| Projection (Decimal Inch) | 4" |
| Through Coolant | Yes |
| Balanced to (RPM) | 30000 RPM |
| Seat Depth (Decimal Inch) | 1.77" |
| Set Screw | 5/8"-18 |
| Product Type | End Mill Holder & Adapter |
