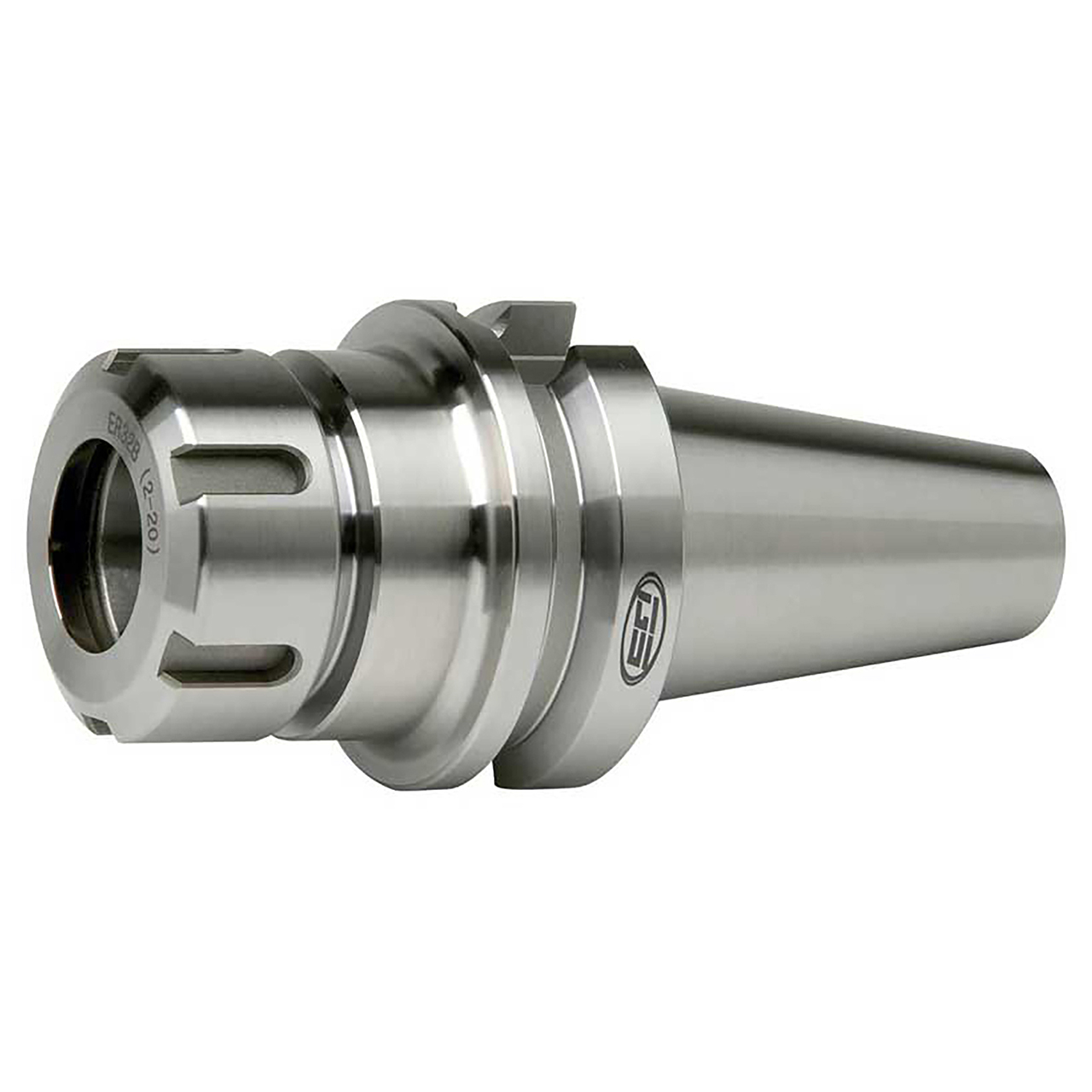

| Manufacturer Part Number | 532188 |
| Collet System | ER |
| Collet Series | ER20 |
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Projection (Decimal Inch) | 6" |
| Minimum Collet Capacity (Decimal Inch) | 0.039" |
| Maximum Collet Capacity (Decimal Inch) | 0.511" |
| Balanced to (RPM) | 30000 RPM |
| Collet Nut Diameter (Decimal Inch) | 1.38" |
| Seat Depth (Decimal Inch) | 1.06" |
| Tightening Torque (Nm) | 81.3 |
| Product Type | Collet Chuck |
