Features
- Quick-change - push back on the holder sleeve and the adapter with tool is removable
- Press on the end of the adapter nose and the tool is removable - all in a few seconds
- Interchangeability - this adapters and holders are interchangeable with Universal-Bilz quick change holders and adapters
Product Specifications
| Manufacturer Part Number | 532283 |
| Shank Type | Taper Shank |
| Taper Size | BT50 |
| Projection (Decimal Inch) | 3.66" |
| Tapping Style | Rigid |
| Nose Diameter (Decimal Inch) | 2" |
| ANSI Tap (Inch) | #0-9/16" |
| System | #2 |
| NPT (Inch) | 1/4-1/2" |

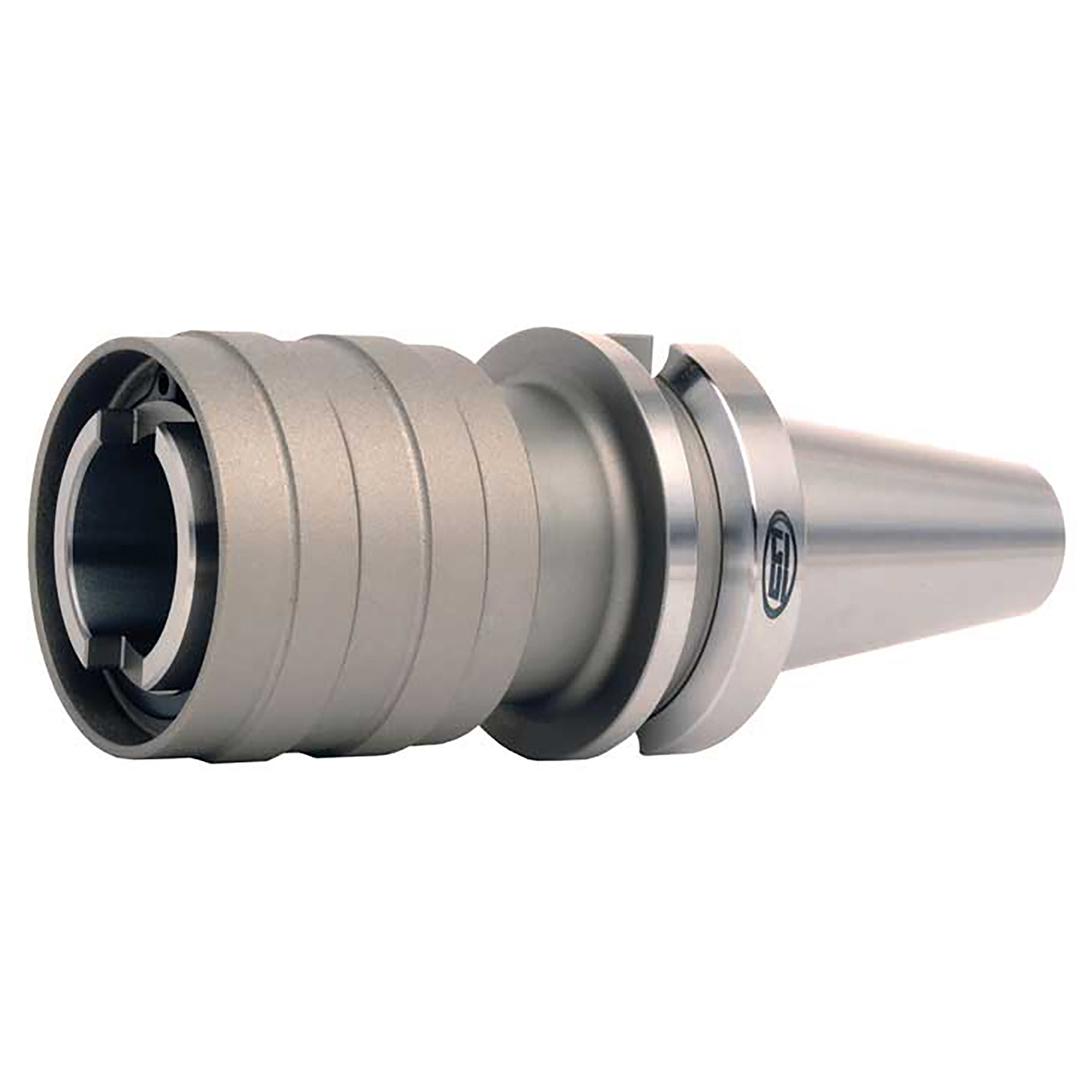

| Product Type | Tapping Chuck |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
GS Tooling
